MSP-SB SERIES
- Innovative Control System: Equipped with advanced Safety PLC control and large color HMI screens for clear visualization and easy adjustment of press functions.
- Flexible Size Options: Offers a wide range of sizes, from 75 to 660 tons, catering to diverse mold and die project requirements.
- Superior Precision: Features a platen parallelism system with four encoders for real-time squareness, ensuring high precision in mold and die work.
- Energy-Efficient Operations: Integrates a servo drive system for greater accuracy in platen positioning and significant energy savings.
- Enhanced Safety Features: Includes dual CAT4 light curtains and dual safety ratchet bars for maximum worker safety.
- Quality Components: Utilizes top-quality, brand-name components that are open source and readily available, ensuring reliability and easy maintenance.
- Remote Service Capabilities: Comes with a Remote Connectivity Unit for troubleshooting and performance monitoring, enhancing operational convenience and uptime.
- Industry 4.0 Ready: Offers optional remote performance monitoring with a custom dashboard, allowing monitoring from any device worldwide.
- High ROI and Cost Efficiency: Designed for high return on investment and cost-effective operations, with a focus on quality and feature-rich offerings.
- Versatile Application Range: Suitable for a variety of processes including plastic injection, die casting, punching, and more, serving the mold and die manufacturing industry extensively.
MSP-SB SERIES
Excellent Choice for a Flexible Range of Heavy Duty Applications.

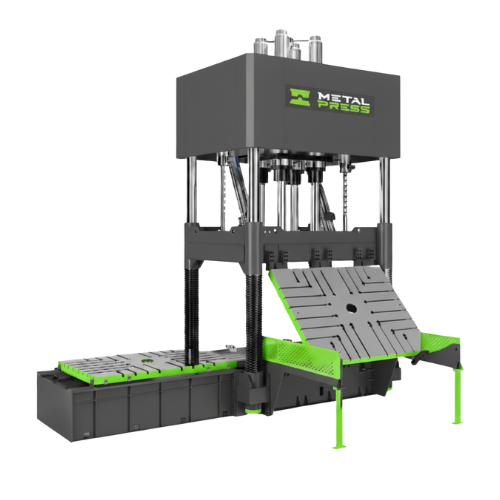

Die spotting presses, also called mold tryout presses, or sometimes referred to as 180 degree tryout presses are used in repairing dies or molds or testing new ones prior to commissioning them for production. We offer nine sizes and two different styles of hydraulic tryout presses, which improve work efficiency, reduce costs and help to produce high-quality dies or molds.
Die spotting presses are suitable for final assembly, grinding, and repair work of molds/dies for various processes including plastic injection molds, die casting dies, punching dies, transfer molds, metal molds, forging molds, glass molds, rubber and plastic molds and metallurgy dies. They are specially made and ideally designed for the mold and die manufacturing industry. In addition, our MSP-SB series is also well suited for large area sheet cold press molding in the automotive, motorcycle, and hardware industries.
INVESTMENT
We Give You More Press For Your Money.
To be competitive today’s economy requires that manufactures run their operations more efficiently and cost effectively than ever before. We offer the highest ROI (return on investment) in the industry. MetalPress gives you high-quality products for a reasonable investment and with more features than any other company. Simply put, we give you the most bang for your buck!
AVAILABLE
Flexibility To Meet Your Needs.
The MSP-SB Series is also available without a side bolster table.
CONTROL
Greater Control Means Greater Efficiency.
Our trim presses feature advance Safety PLC control with large color HMI screens with easy to read graphics – all at no extra charge. See all press functions and parameters on a clear visual layout, and easily change anything on the fly. Now that is real control.
SIZES
Flexible Range of Applications.
Available from 75 tons all the way up to 660 tons the MSP-SB Series of 4 post hydraulic die spotting presses can handle any die or mold project you may have.
| Standard | US / Imperial | Metric | ||
| Model | Clamping Force | Table Size | Clamping Force | Table Size |
| MSP-SB-75-39-31 | 75 Tons | 39” x 31” | 70 Tonnes | 1000 x 800 mm |
| MSP-SB-130-55-43 | 130 Tons | 55” x 43” | 120 Tonnes | 1400 x 1100 mm |
| MSP-SB-175-63-51 | 160 Tons | 63” x 51” | 160 Tonnes | 1600 x 1300 mm |
| MSP-SB-220-70-63 | 220 Tons | 70.8” x 63” | 200 Tonnes | 1800 x 1500 mm |
| MSP-SB-300-78-63 | 300 Tons | 78.7” x 63” | 280 Tonnes | 2000 x 1600 mm |
| MSP-SB-350-86-70 | 350 Tons | 86.6” x 70.8” | 320 Tonnes | 2200 x 1800 mm |
| MSP-SB-385-118-98 | 385 Tons | 118” x 98” | 350 Tonnes | 2500 x 2000 mm |
| MSP-SB-440-118-78 | 440 Tons | 118” x 78.7” | 400 Tonnes | 3000 x 2000 mm |
| MSP-SB-440-118-98 | 440 Tons | 118” x 98.4” | 400 Tonnes | 3000 x 2500 mm |
| MSP-SB-440-137-98 | 440 Tons | 137.8” x 98.4” | 400 Tonnes | 3500 x 2000 mm |
| MSP-SB-550-118-78 | 550 Tons | 118” x 78.7” | 500 Tonnes | 3000 x 2000 mm |
| MSP-SB-550-122-82 | 550 Tons | 122” x 82.6” | 500 Tonnes | 3100 x 2100 mm |
| MSP-SB-550-137-98 | 550 Tons | 137.8” x 98.4” | 500 Tonnes | 3500 x 2500 mm |
| MSP-SB-550-157-98 | 550 Tons | 157” x 98.4” | 500 Tonnes | 4000 x 2500 mm |
| MSP-SB-660-137-98 | 660 Tons | 137.8” x 98.4” | 600 Tonnes | 3500 x 2500 mm |
| MSP-SB-660-157-98 | 660 Tons | 157” x 98.4” | 600 Tonnes | 4000 x 2500 mm |
| MSP-SB-660-157-118 | 660 Tons | 157” x 118” | 600 Tonnes | 4000 x 3000 mm |
