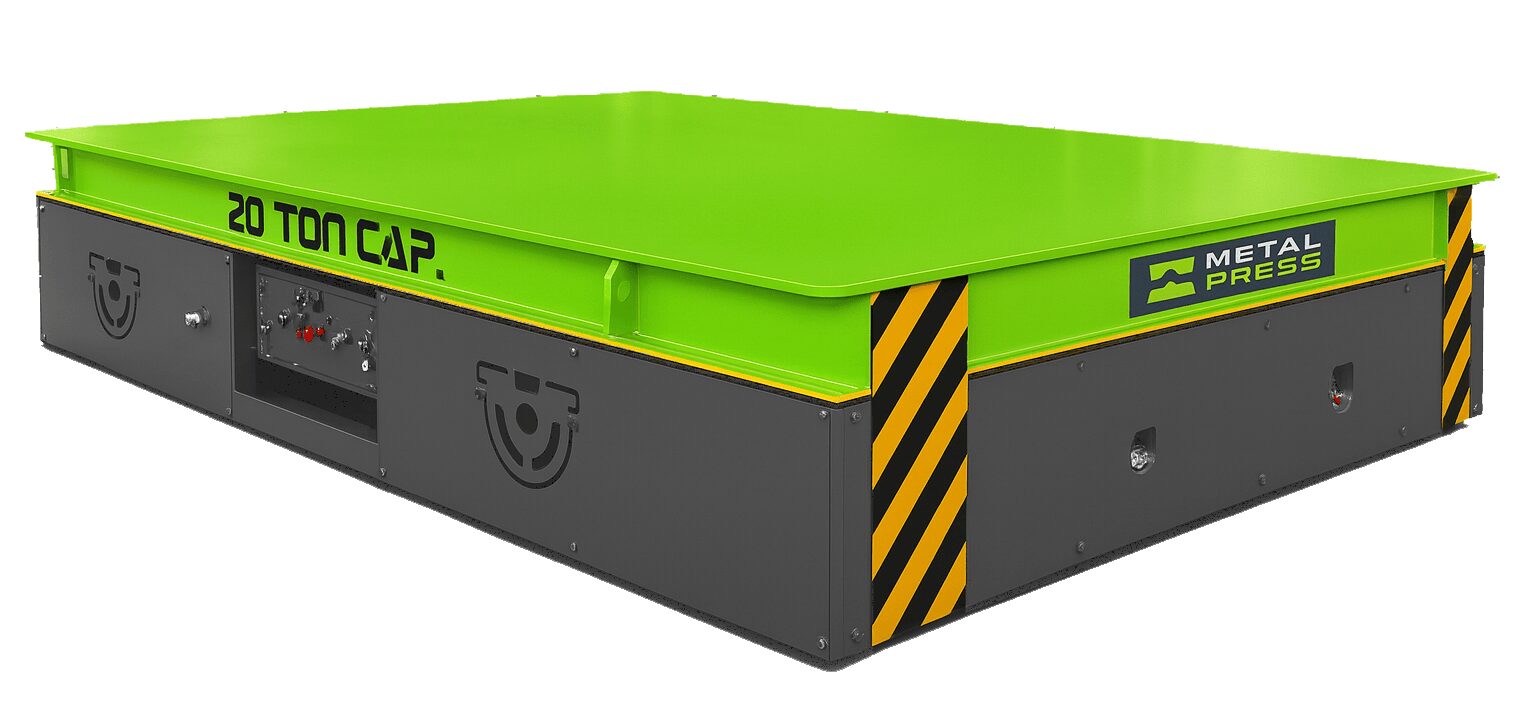

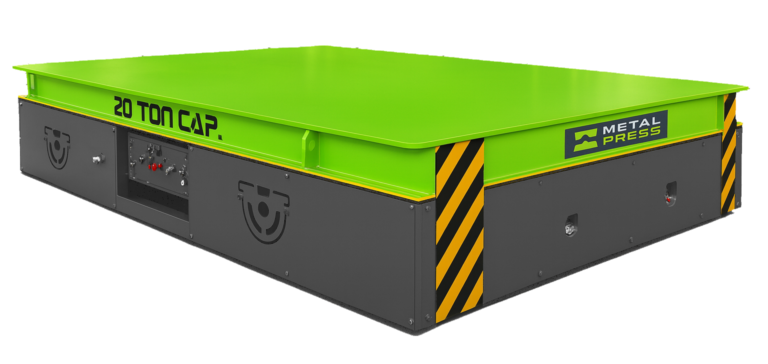

MOLD & DIE TRANSFER CART
MOLD & DIE TRANSFER CART

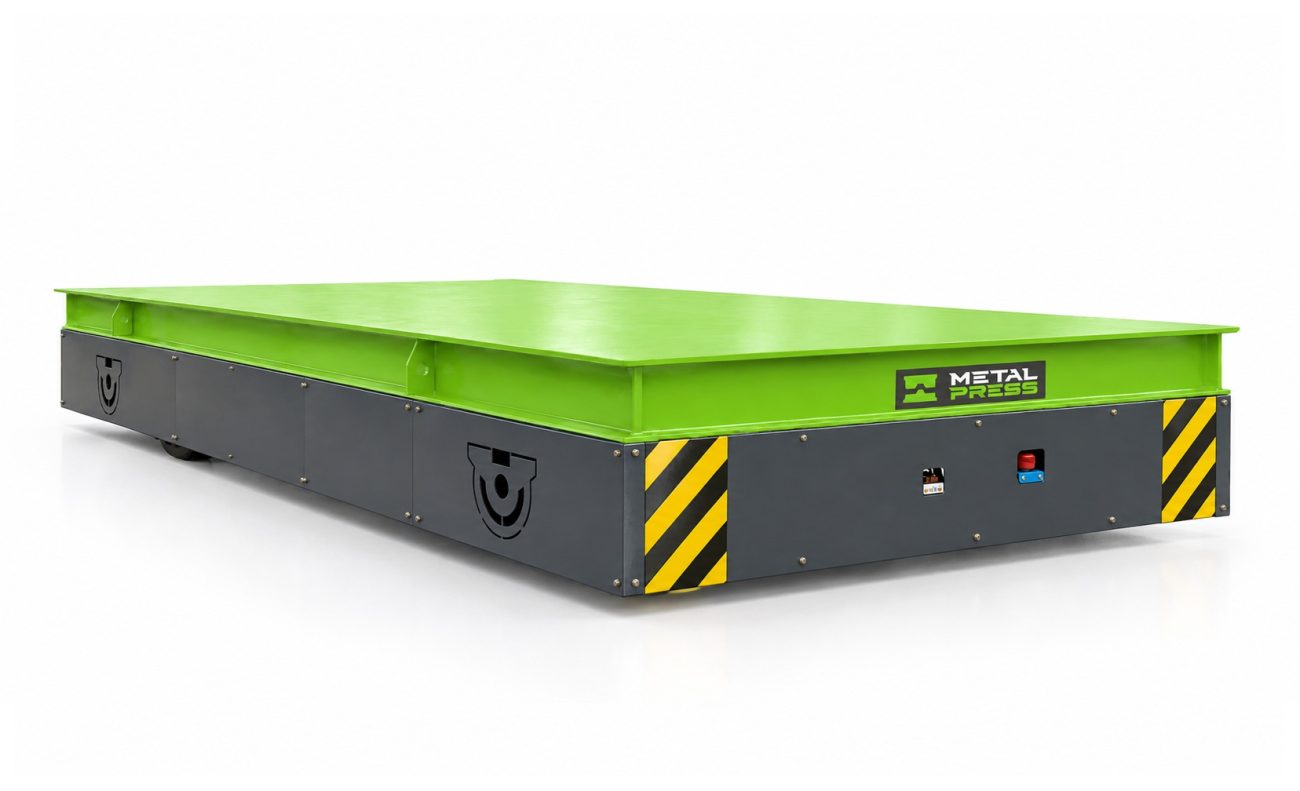

Our heavy-duty Mold Die Transfer Carts – MMC Series – are built to handle the safe and efficient movement of large dies and molds across your facility. Designed to eliminate the risks of manual handling and unsafe transport methods, these carts streamline die changes, reduce downtime, and improve overall productivity. With robust construction and smooth operation, they provide a reliable solution for transferring heavy dies between presses, storage, and maintenance areas while protecting workers and equipment.
CONSTRUCTION
Made to Stand Up to Constant Use.

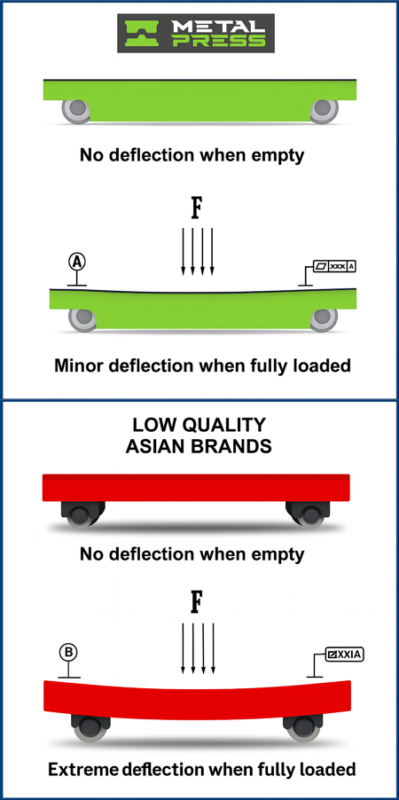

Our die / mold transfer carts are made of robust reinforced welded steel construction which has minor deflection when under full load.The carts are driven by dual direct drive gear motors.Heavy-duty sealed bearings help the wheelssupport the load.
ELECTRIC
Smooth Operation

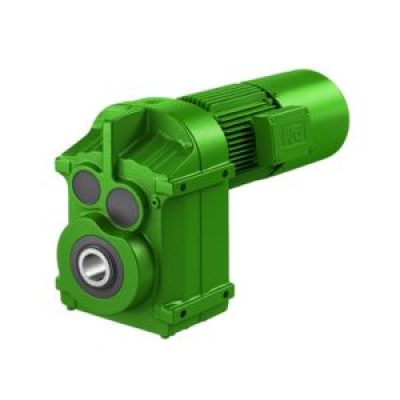

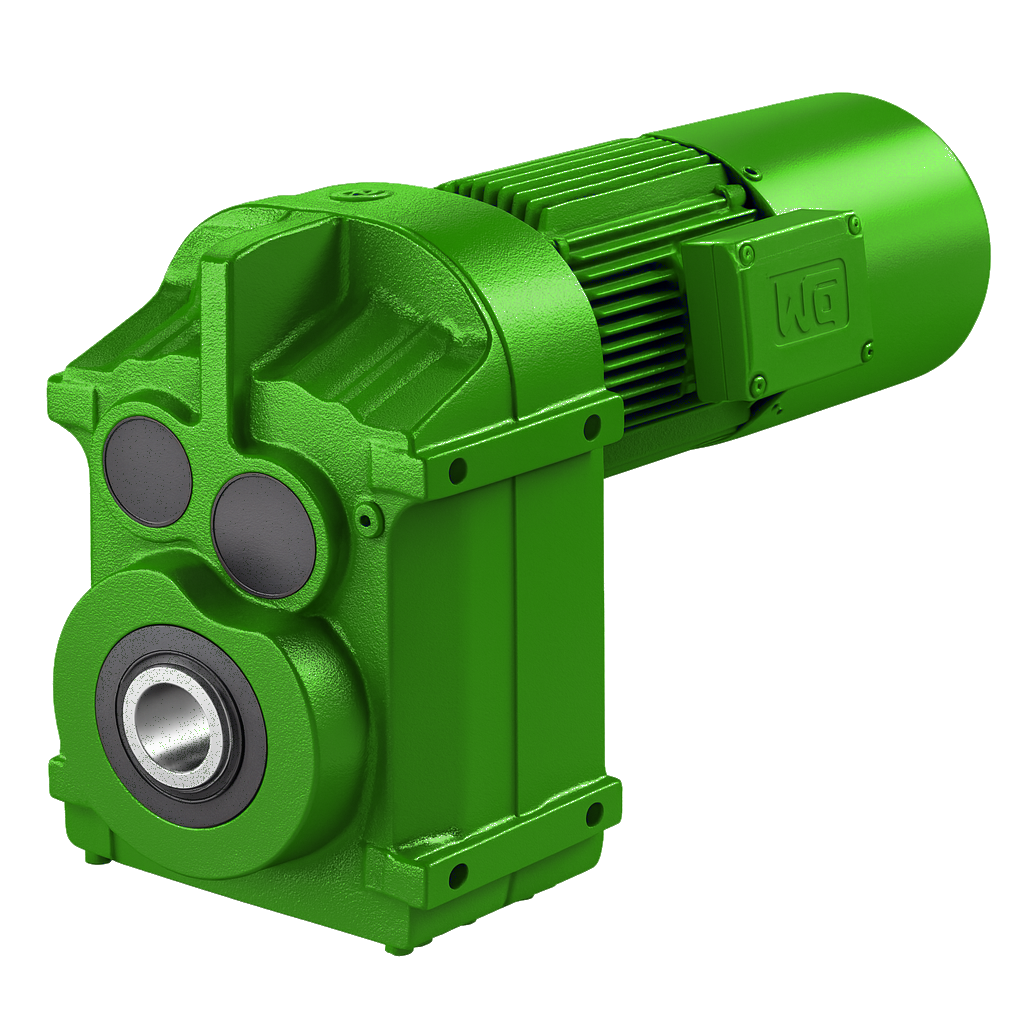

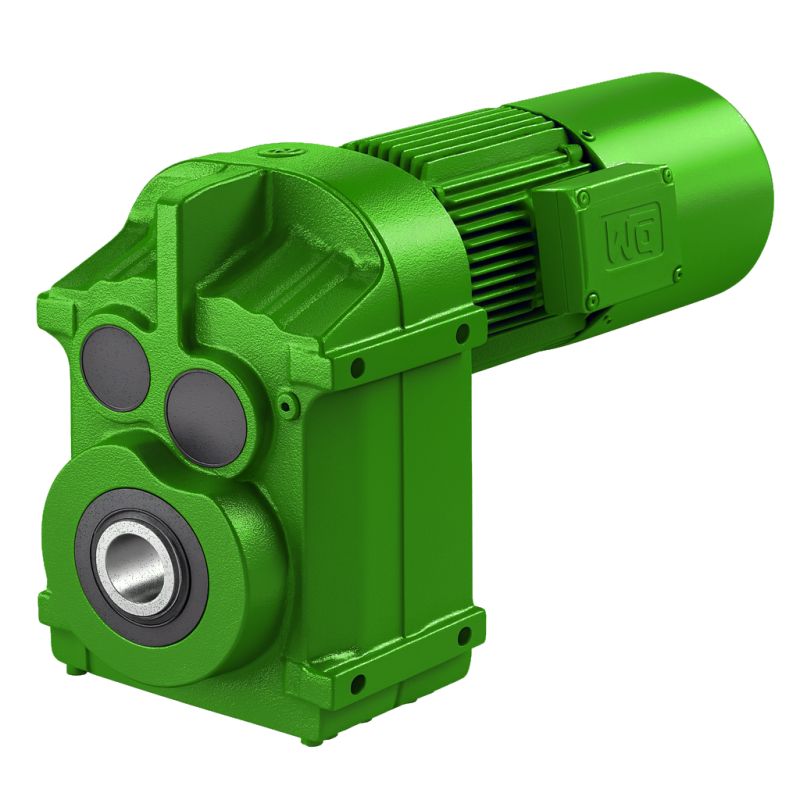

We use a dual electric-powered gear motors that drive two wheels which provide smooth and safe travel and rotation.A brake motor and gear reducer provide a smooth drive and rotation without jerking or sudden speed changes which could destabilize the load
MOVEMENT
Any Direction You Need

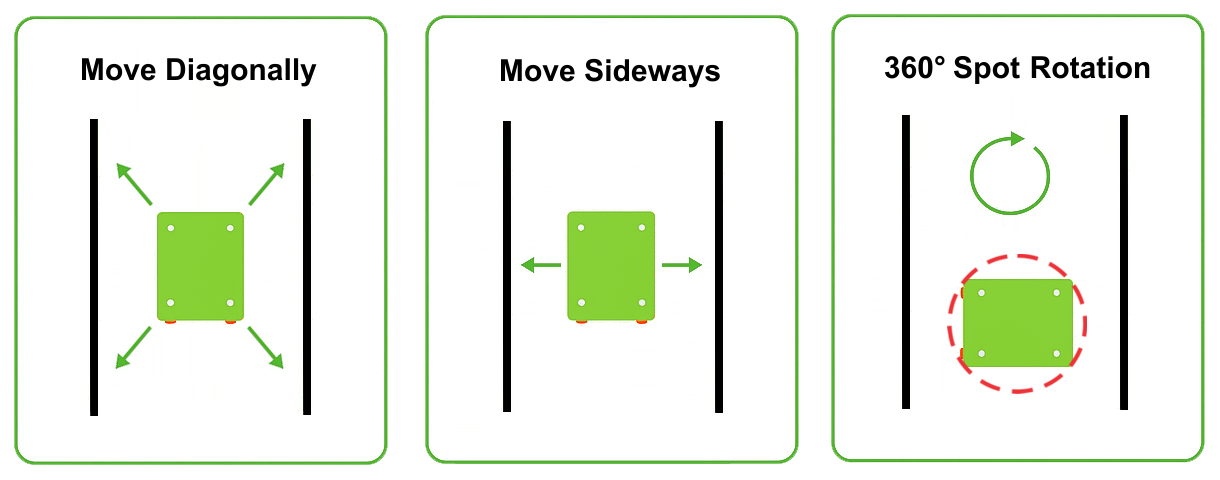

Our Die / Mold transfer carts can move in virtually any direction and can fit into tight places.

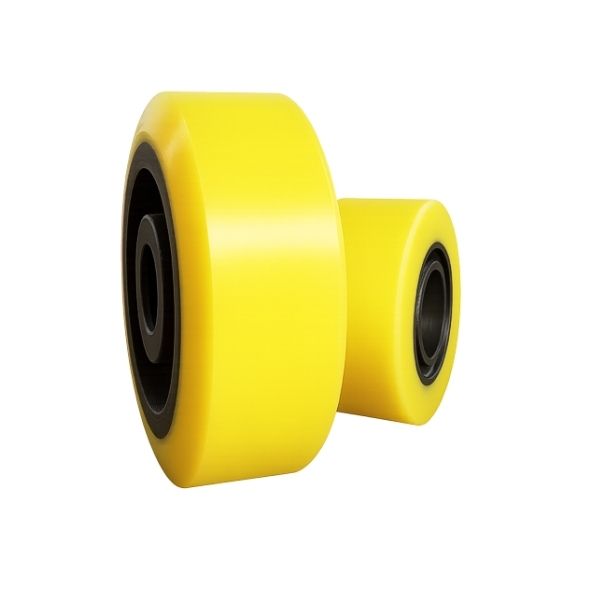

WHEELS
Smooth Ride
Solid polyurethane wheels offer high load capacity, durability,and floor protection. They resist chemicals, reduce noise, and provide excellent traction,making them ideal for die transfer carts. Reliable, safe, and long-lasting, they ensure smooth,damage-free movement of heavy items.

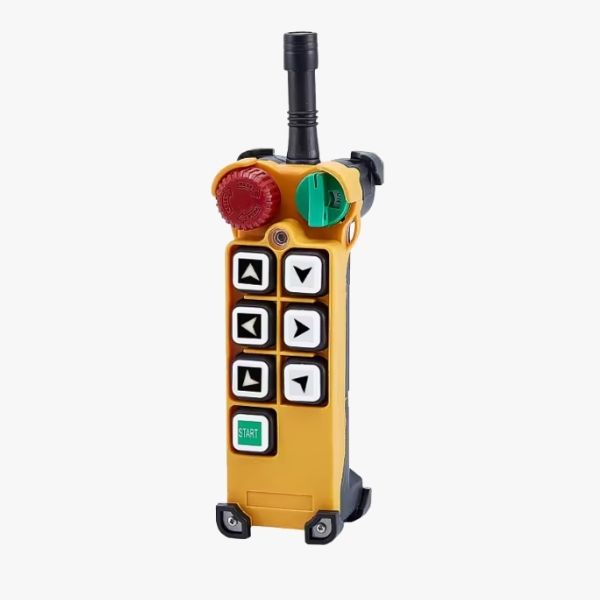

WIRELESS CONTROL
Safe Operation at a Distance
Our Die / Mold transfer carts come standard with an easy-to-use wireless remote control that can be used at a safe distance away from the cart. An upgraded joystick version is available as an option.
FIRST

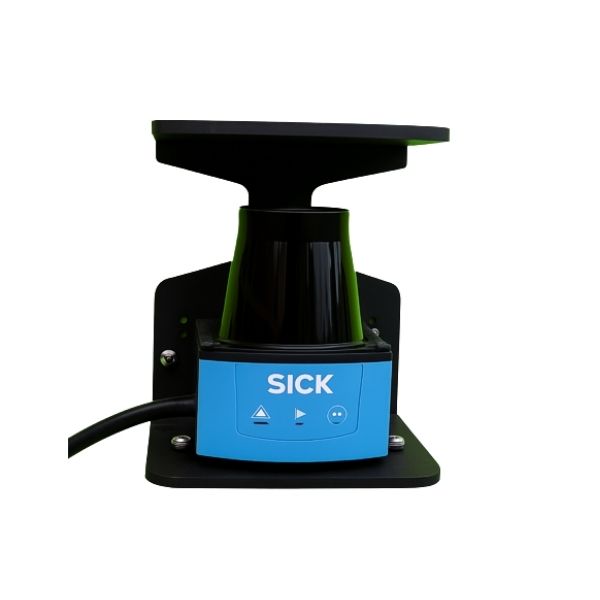

Lidar Laser Scanner
Our carts feature a lidar sensor which emits laser beams in ascanning plane, measuring reflected signals from surrounding objects. It calculates distance and angle using time-of-flight or phase-shift methods,creating a precise 2D map. This enables reliable detection,obstruction avoidance,measurement, navigation, and safety monitoring in virtually any industrial environment.

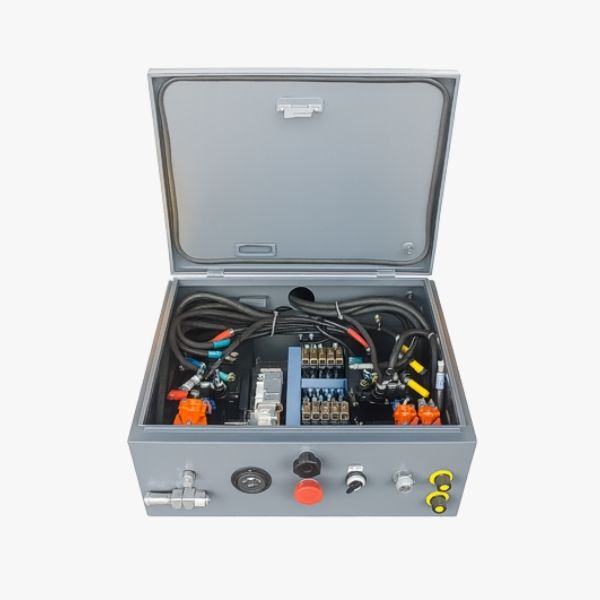

CONTROL PANEL
Easy Access
The control pane sides out of the cart and the design has been simplified not only to allow or easier access but also easier maintenance.

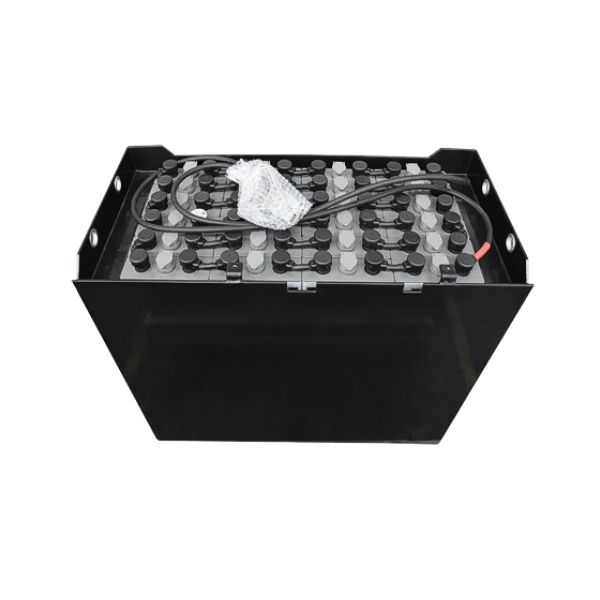

LEAD ACID BATTERIES
Durable and dependable power
Lead-acid batteries provide a cost-effective, reliable power source for die transfer carts. Known for durability and high load capacity, they deliver consistent energy for heavy-duty operations. With proven technology, easy maintenance,and wide availability, lead-acid batteries ensure dependable performance, long service life,and lower up front investment compared to alternatives.
STANDARD FEATURES INCLUDED
| Item | Price |
| Fast Operation | Included |
| Easy to Use | Included |
| Simple to Maintain | Included |
| Safer to Use Than Conventional Methods | Included |
| Can be Used for Dies or Molds | Included |
| Can be Used for Other Heavy Loads | Included |
| Voltage Choice: 380V, 50 Hz, 3 ph, 480V, 60 Hz, 3 ph, 575V, 60 Hz, 3 ph | Included |
COMPONENTS
We Use Brand Name Components You Know, Already Use and Trust.
We use only the finest quality components that are open source, and readily available locally in your area, or from our online parts store.We do not use any impossible to find proprietary components.
INVESTMENT
We Give You More Value for Your Money.
To be competitive today’s economy requires that manufactures run their operations more efficiently and cost effectively than ever before. We offer the highest ROI (return on investment) in the industry. MetalPress gives you high quality products for are resonable investment and with more features than any other company

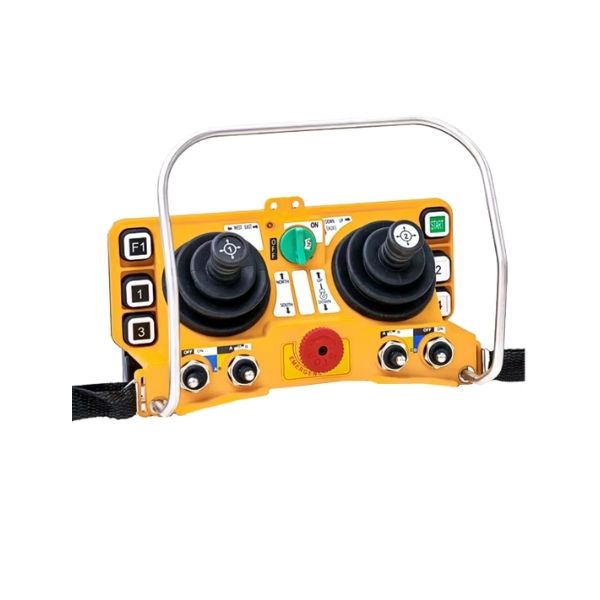

CONTROL
Ergonomic control
This optional joystick pendant offers precise, ergonomic control for die transfer carts. Dual joy sticks ensure smooth,multi directional movement. Improves efficiency, and giving operators greater confidence when moving and positioning heavy dies.
It can be suspended from the neck with the included strap, thus freeing up both hands.

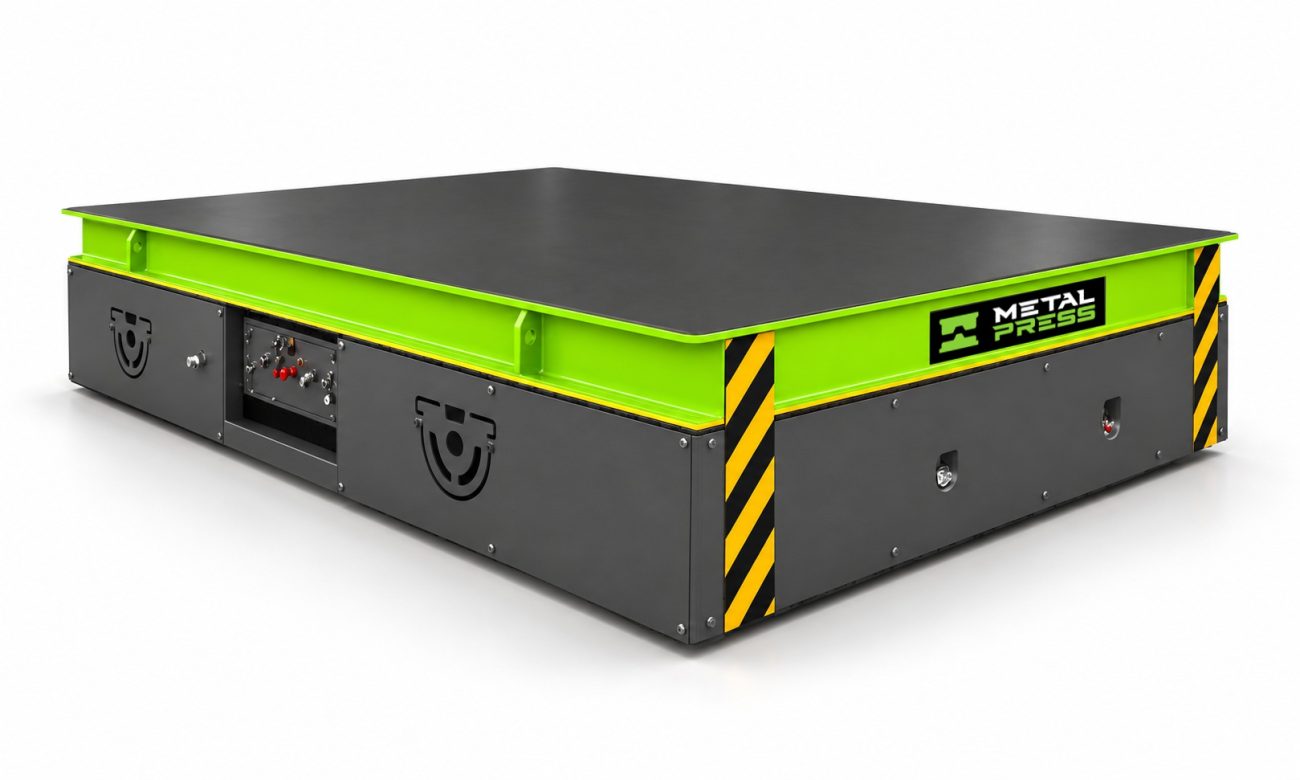

COVER
Added Load Protection
Our optional rubber cover enhances safety and performance by providing slip resistance, protecting dies from impact damage, reducing vibration, and minimizing noise during movement. It also shields the cart surface from wear,extends equipment life, and improves handling stability for heavy industrial applications.

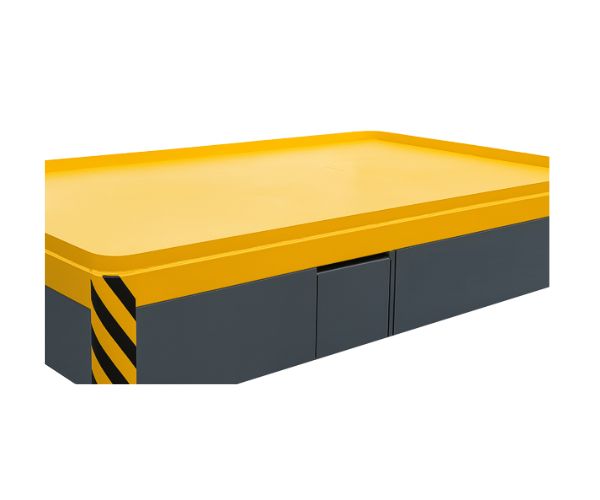

EDGE
Add Worker Protection
Depending on your circumstances our optional full perimeter safety edge may be a good option for added worker protection and uneven floors

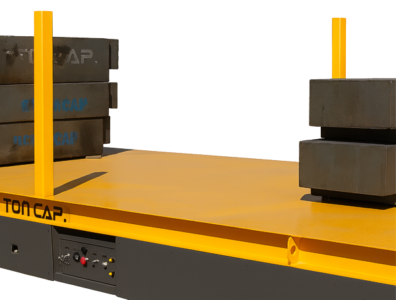

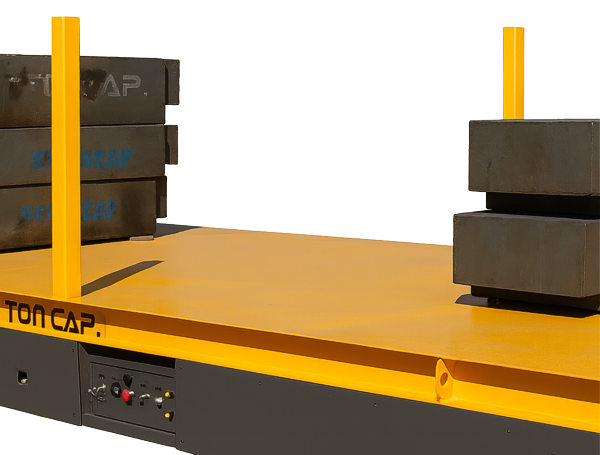

RAILS
Add Worker Protection
Our MCC Series is available with a total of four optional safety rails on both sides for added worker protection and safety incase the load shifts.The rails are removable
BATTERIES
Faster Charging
Optional lithium batteries deliver superior performance for die transfer carts with longer lifespan, faster charging, and higher energy efficiency. They reduce downtime, require minimal maintenance, and offer lighter weight for improved mobility. With consistent power output and advanced safety features, lithium batteries provide a sustainable, cost-saving solution for demanding industrial operations.
OPTIONS
Two standard colors are avaliable.
SIZES
Flexible Range of Applications.
Available from 2 tons all the way up to 50 tons
| Model | Load Capacity (tons) | Table Size (A) x (B) (in) | Table Height (H) (in) |
| MCC-2 | 2.2 | 78.7 x 59 | 17.7 |
| MCC-5 | 5.5 | 130 x 78.7 | 17.7 |
| MCC-10 | 11 | 141.7 x 78.7 | 19.7 |
| MCC-15 | 16.5 | 157.5 x 86.6 | 23.6 |
| MCC-20 | 22 | 157.5 x 86.6 | 23.6 |
| MCC-30 | 33 | 177 x 86.6 | 23.6 |
| MCC-40 | 44 | 216.5 x 86.6 | 27.6 |
| MCC-50 | 55 | 236.2 x 90.6 | 27.6 |
| Model | Load Capacity (tonnes) | Table Size (A) x (B) (mm) | Table Height (H) (mm) |
| MCC-2 | 2 | 2000 x 1500 | 450 |
| MCC-5 | 5 | 3300 x 2000 | 450 |
| MCC-10 | 10 | 3600 x 2000 | 500 |
| MCC-15 | 15 | 4000 x 2200 | 600 |
| MCC-20 | 20 | 4000 x 2200 | 600 |
| MCC-30 | 30 | 4500 x 2200 | 650 |
| MCC-40 | 40 | 5500 x 2300 | 700 |
| MCC-50 | 50 | 6000 x 2300 | 700 |
