C-FRAME PRESS
SINGLE CRANK PRESS - MECHANICAL PRESS
C-FRAME PRESS
Our MSC Series C-Frame Single Crank Press is engineered for manufacturers seeking a reliable, high-speed C-Frame Press for stamping, punching, and forming operations. Built on a rigid C-frame structure with a precision single-crank mechanical drive and flywheel system, it delivers consistent power, accuracy, and repeatability on every stroke. Combining durability, efficiency, and easy operation, the MSC Series is ideal for mass-production metalworking applications.
IMPROVED SERVICE LIFE
High Fequency Quenching

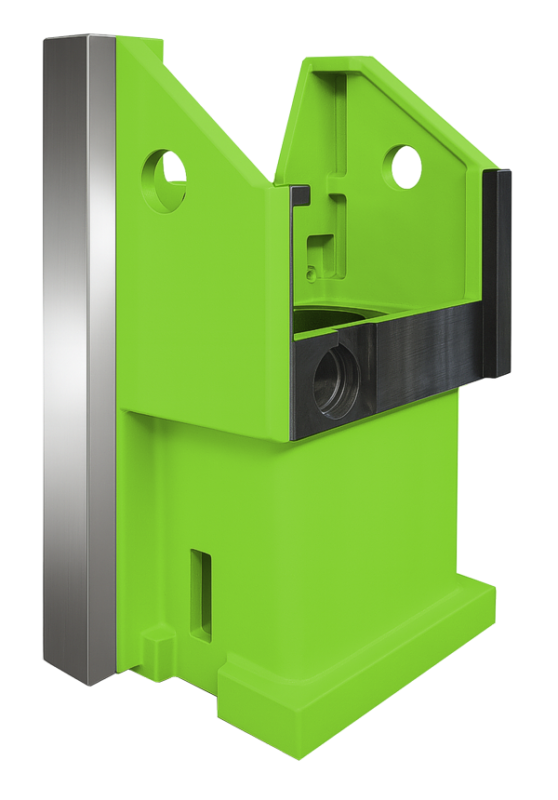

We use high-frequency quenching on our C-Frame Press slide guides, achieving hardness levels over HRC 48. Rail grinding precision is maintained above Ra 0.4, with an average flatness of 0.03 mm/m². The result is reduced wear, sustained precision, and an extended service life.
GET PARTS ANYWHERE
Open Source Control System
Our C-Frame Press control systems are made with open-source, readily available components, with no custom-made OEM parts.
STRENGTH AND WEAR RESISTANCE
Bronze Worm Gear
Bronze worm gears reduce the probability of seizure and greatly reduce the process of die adjustment. The bronze-copper alloy (ZQSN10-1) extend the service life when compared to cast iron worm gears.
MORE STAMPING
Less Seizing
We use a sintered TM-3 copper alloy ball seat in our C-Frame Press, instead of traditional cast iron. The TM-3 copper alloy offers a surface strength of 1,000 kgf/cm², reducing the risk of seizure and extending the service life of this component.
LESS WEAR AND TEAR
Copper Sleeves
The C-Frame Press uses all bronze-copper alloy sleeves made from Tin Phosphorus Bronze ZQSN10-1, which are about 1.5 times stronger than standard copper BC6. The result is reduced wear and improved durability.
STRONGER AND BIGGER
Hardened Crankshaft
Our crankshafts are made of high strength 42 CrMo alloy and are larger than most. They are forged, heat treated and inspected for flows. The result is that the strength is 1.3 times higher than that of 45 steel and breaking is reduced.
HARDENED AND STRONGER
Chromium Plated Thimble
Our C-Frame Press thimbles are chromium plated with a surface finish between Ra 0.4 and Ra 0.8, then hardened to HRC 48. This ensures an excellent oil seal and extends overall seal life.
LESS WEAR ON TOOTH SURFACES
Hardened Gear Shaft
In our C-Frame Presses, the gear shaft is manufactured from high-strength 42CrMo alloy, and all tooth surfaces are treated with intermediate-frequency hardening to increase surface hardness. This results in reduced wear, smoother meshing, and higher transmission precision.
IMPROVED SERVICE LIFE
High Frequency Quenched Gear Drive
We use a high frequency quenching on our gear drives which reaches over HRC 48. Rail grinding is above RA 0.4 and the average flatness is 0.03 mm/m2. The result is reduced wear, sustained precision and longer service life.
SAFETY LIGHT CURTAINS
Worker Safety Should Not Be An Option For A Press
We take worker safety seriously — that’s why all our C-Frame Presses come equipped with full-size CAT4 safety light curtains as a standard feature. These light curtains integrate with the press’s other safety systems to ensure maximum operator protection at all times.
MORE OIL, LESS WEAR
Bigger Oil Piping
Our C-Frame Presses use 8 mm diameter copper lubrication pipes to deliver consistent oil flow to all critical points. The larger, higher-gauge design reduces the risk of breakage and ensures reliable lubrication throughout the system.
OPTIMIZED STRUCTURE
Finite Element Analysis (FEA)
Through SolidWorks finite element analysis (FEA) we optimize the press structure and refine the design for maximum performance.
HIGHEST RETURN ON INVESTMENT
We Give You More Press For Your Money.
In today’s competitive economy, manufacturers need to run operations more efficiently and cost-effectively than ever before. Our C-Frame Press delivers the highest ROI in the industry — combining exceptional build quality, advanced features, and outstanding value. MetalPress Machinery gives you premium performance at a reasonable investment — simply put, the most bang for your buck.
REMOTE SERVICE
We Can Remotely Troubleshoot Your Press from Our Facility.
Our C-Frame Single Crank Presses include a Remote Connectivity Unit which allows our press technicians to remotely check the performance of the press, make any needed changes to the program or HMI, or to troubleshoot it directly from our service center. The customer is only required to connect the unit to the Internet via an Ethernet cable. We handle the rest.
HIGH QUALITY COMPONENTS
We Use Brand Name Components You Know, Already Use and Trust.
Our C-Frame Press is built using only the finest quality, open-source components — all readily available locally or through our online parts store. We never use hard-to-find proprietary components, ensuring easy maintenance and long-term reliability.
INDUSTRY 4.0 REMOTE MONITORING
Remotely Monitor Your Stamping Press Performance From Any Device.
As an option, all our presses are available with Industry 4.0 remote performance monitoring units which feature a custom dashboard. You can not only monitor press performance, but you can be notified before an issue occurs. Included are condition based maintenance reminders and shift performance statistics. Minimize impact of emergencies and maximize press uptime, and productivity. Monitor what is going on with the stamping press and your production efficiency from any device, anywhere in the world.
ELEVEN STANDARD SIZES
Flexible Range of Applications.
Available from 25 tons all the way up to 400 tons
| Model | Metric Tons | Slide Size (mm) | Bolster Size (mm) |
| MSC-25 | 25 | 470 x 230 x 50 | 680 x 300 x 70 |
| MSC-35 | 35 | 520 x 250 x 50 | 800 x 400 x 70 |
| MSC-45 | 45 | 560 x 340 x 60 | 850 x 440 x 80 |
| MSC-60 | 60 | 700 x 400 x 70 | 900 x 500 x 80 |
| MSC-80 | 80 | 770 x 420 x 70 | 1000 x 550 x 90 |
| MSC-110 | 110 | 910 x 470 x 80 | 1150 x 600 x 110 |
| MSC-160 | 160 | 990 x 550 x 90 | 1250 x 800 x 140 |
| MSC-200 | 200 | 1130 x 630 x 90 | 1400 x 820 x 160 |
| MSC-260 | 260 | 1250 x 700 x 100 | 1500 x 840 x 180 |
| MSC-315 | 315 | 1300 x 750 x 100 | 1600 x 840 x 180 |
| MSC-400 | 400 | 1300 x 750 x 110 | 1700 x 900 x 200 |
| Model | US Tons | Slide Size (in) | Bolster Size (in) |
| MSC-25 | 28 | 18.5 x 9.1 x 2.0 | 26.8 x 11.8 x 2.8 |
| MSC-35 | 39 | 20.5 x 9.8 x 2.0 | 31.5 x 15.7 x 2.8 |
| MSC-45 | 50 | 22.0 x 13.4 x 2.4 | 33.5 x 17.3 x 3.1 |
| MSC-60 | 66 | 27.6 x 15.7 x 2.8 | 35.4 x 19.7 x 3.1 |
| MSC-80 | 88 | 30.3 x 16.5 x 2.8 | 39.4 x 21.7 x 3.5 |
| MSC-110 | 121 | 35.8 x 18.5 x 3.1 | 45.3 x 23.6 x 4.3 |
| MSC-160 | 176 | 39.0 x 21.7 x 3.5 | 49.2 x 31.5 x 5.5 |
| MSC-200 | 220 | 44.5 x 24.8 x 3.5 | 55.1 x 32.3 x 6.3 |
| MSC-260 | 287 | 49.2 x 27.6 x 3.9 | 59.1 x 33.1 x 7.1 |
| MSC-315 | 347 | 51.2 x 29.5 x 3.9 | 63.0 x 33.1 x 7.1 |
| MSC-400 | 441 | 51.2 x 29.5 x 4.3 | 66.9 x 35.4 x 7.9 |
