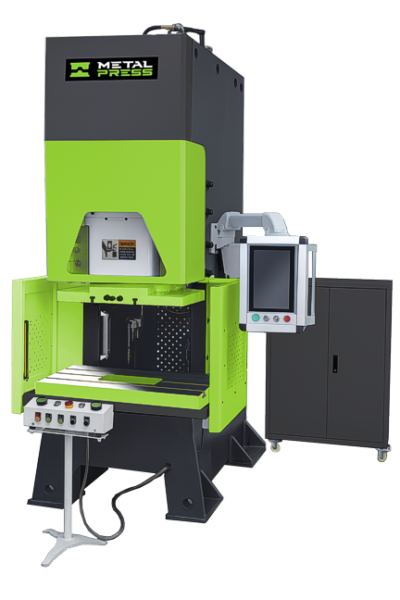

Our MSC-SV Series C-Frame Single Crank Servo Mechanical Press is engineered for manufacturers seeking a high-performance C-Frame Press that combines strength, flexibility, and precision. Built on a rigid C-frame structure and powered by advanced servo drive technology, it offers fully programmable stroke profiles — including adjustable speeds, dwell positioning, and forming velocity. This allows operators to optimize production for various materials and applications, improving part accuracy and extending tool life.
Application: Compact and versatile, the MSC-SV is ideal for high-speed progressive stamping, precision blanking, and complex forming operations across the automotive, electrical, appliance, and general metalworking industries.
9 STAMPING MODES
Take Full Control

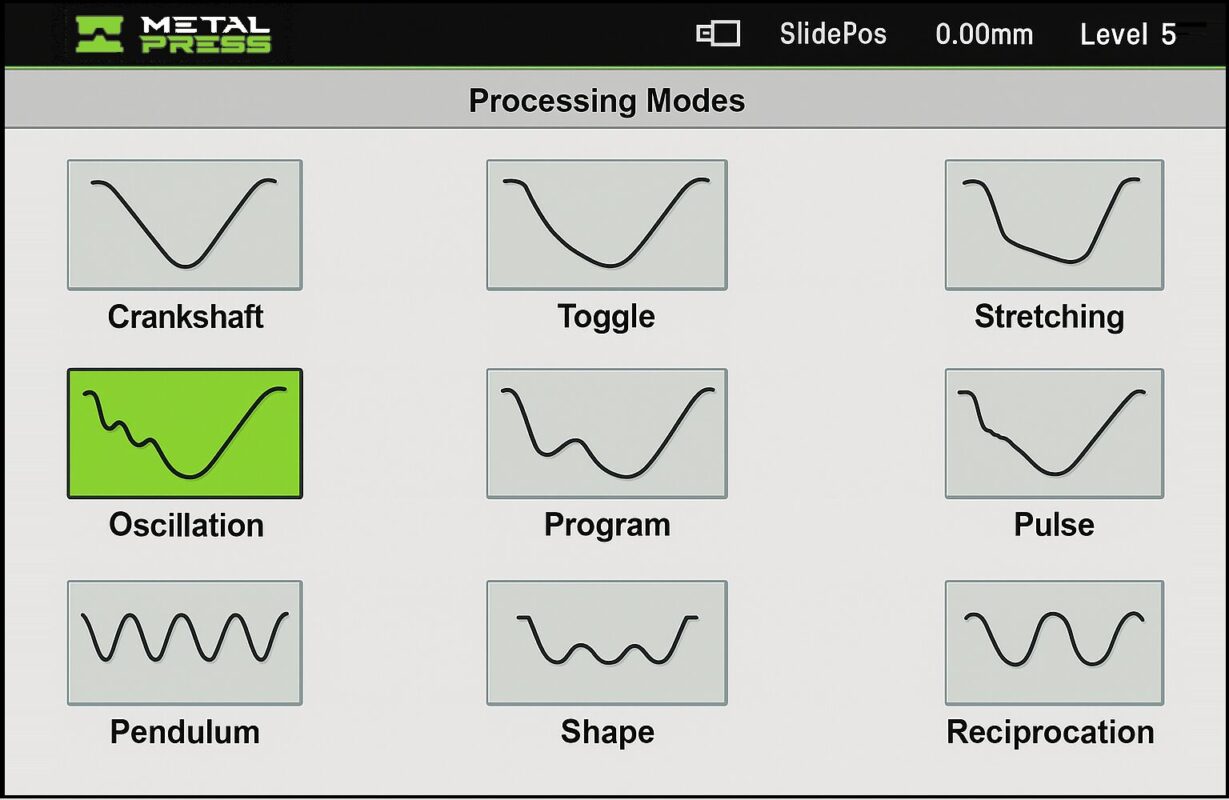

This C-Frame Servo Press is equipped with nine built-in stamping modes, allowing operators to choose the optimal motion curve for each application. This versatility ensures exceptional precision, higher efficiency, and optimized energy savings in every production cycle.
SERVO DRIVE SYSTEM
Greate Accuracy and Efficiency

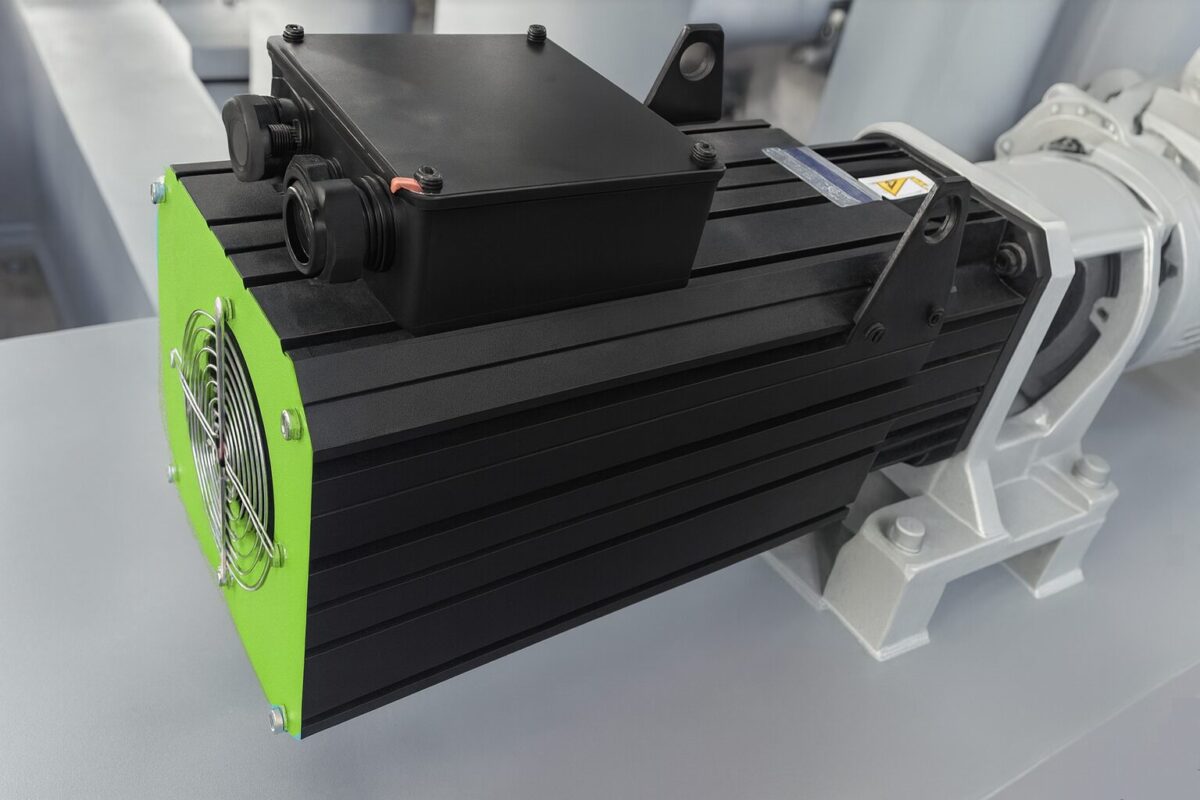

Our C-Frame Servo Press system provides exceptional accuracy in the moving platen’s stopping position while delivering significant energy savings during every operation.
LONGER SERVICE LIFE
High Fequency Quenching

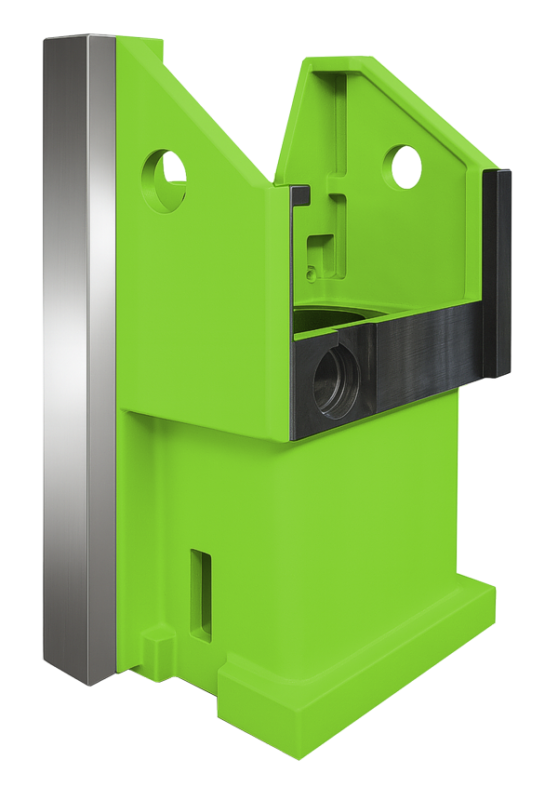

We use high-frequency quenching on our C-Frame Press slide guides, achieving hardness levels over HRC 48. Rail grinding precision is maintained above Ra 0.4, with an average flatness of 0.03 mm/m². The result is reduced wear, sustained precision, and a longer service life.
GET PARTS ANYWHERE
Open Source Control System
Our C-Frame Press control system is built using open-source, readily available components. We never use custom-made OEM parts that are difficult to source or replace.
STRENGTH AND WEAR RESISTANCE
Bronze Worm Gear
In our C-Frame Press, bronze worm gears minimize the risk of seizure and make die adjustments faster and smoother. The bronze-copper alloy (ZQSN10-1) offers superior durability, extending service life compared to traditional cast iron worm gears.
MORE STAMPING
Less Seizing
Our C-Frame Press uses a sintered TM-3 copper alloy ball seat instead of cast iron. The TM-3 copper alloy provides a surface strength of 1,000 kgf/cm², reducing the risk of seizure and extending the service life of this component.
LESS WEAR AND TEAR
Copper Sleeves
The all bronze-copper alloy sleeves are made of Tin, Phosphorus Bronze ZQSN10-1 and are about 1.5 times stronger then just copper BC6. The result is reduced wear.
STRONGER AND BIGGER
Hardened Crankshaft
Our C-Frame Press crankshafts are made from high-strength 42CrMo alloy and are designed larger than most for superior durability. Each is forged, heat-treated, and flaw-inspected, resulting in a strength 1.3 times higher than standard 45 steel and greatly reducing the risk of breakage.
HARDENED AND STRONGER
Chromium Plated Thimble
Our C-Frame Press thimbles are chromium plated with a surface finish between Ra 0.4 and Ra 0.8, then hardened to HRC 48. This ensures an excellent oil seal and extends the overall life of the sealing system.
LESS WEAR ON TOOTH SURFACES
Hardened Gear Shaft
The gear shaft is made of high strength 42CrMo alloy and all tooth surfaces are treated with intermediate frequency which increases hardness. The advantage of this is less wear on tooth surfaces and higher meshing precision.
IMPROVED SERVICE LIFE
High Frequency Quenched Gear Drive
We use high-frequency quenching on our C-Frame Press gear drives, achieving hardness levels over HRC 48. Rail grinding precision is maintained above Ra 0.4, with an average flatness of 0.03 mm/m². The result is reduced wear, sustained precision, and a longer service life.
SAFETY LIGHT CURTAINS
Worker Safety Should Not Be An Option For A Press
We take operator safety seriously — that’s why every C-Frame Servo Press comes equipped with full-size CAT4 safety light curtains as a standard feature. These light curtains integrate seamlessly with other safety systems to ensure maximum operator protection at all times.
MORE OIL, LESS WEAR
Bigger Oil Piping
Our C-Frame Servo Press uses 8 mm diameter copper lubrication pipes to ensure consistent oil delivery to all critical points. The larger, higher-gauge design minimizes the risk of breakage and guarantees a steady flow of lubrication throughout the system.
OPTIMIZED STRUCTURE
Finite Element Analisis (Fea)
Through SolidWorks Finite Element Analysis (FEA), our C-Frame Presses are structurally optimized and precision-refined to achieve maximum strength, stability, and performance.
HIGHEST RETURN ON INVESTMENT
We Give You More Press For Your Money.
In today’s competitive economy, manufacturers must operate more efficiently and cost-effectively than ever before. Our C-Frame Presses deliver the highest ROI in the industry — combining exceptional quality, advanced features, and outstanding value. MetalPress Machinery provides premium performance at a reasonable investment — simply put, the most bang for your buck!
REMOTE SERVICE
We Can Remotely Troubleshoot Your Press from Our Facility.
Our C-Frame Servo Presses come equipped with a Remote Connectivity Unit, allowing our technicians to remotely monitor press performance, make program or HMI adjustments, and troubleshoot directly from our service center. The customer simply connects the unit to the Internet via an Ethernet cable — we take care of the rest.
HIGH QUALITY COMPONENTS
We Use Brand Name Components You Know, Already Use and Trust.
Our C-Frame Press is built using only the finest quality, open-source components that are readily available locally or through our online parts store. We never use hard-to-find proprietary components, ensuring easy maintenance and long-term reliability.
INDUSTRY 4.0 REMOTE MONITORING
Remotely Monitor Your Stamping Press Performance From Any Device.
As an option, all our C-Frame Presses can be equipped with Industry 4.0 remote performance monitoring systems featuring a custom dashboard. These systems allow you to monitor press performance in real time and receive alerts before issues occur. Features include condition-based maintenance reminders, shift performance statistics, and detailed production analytics. Minimize downtime, prevent unexpected failures, and maximize productivity — all while monitoring your C-Frame Press operations from any device, anywhere in the world.
EIGHT STANDARD SIZES
Flexible Range of Applications.
Available from 45 tons all the way up to 315 tons
| Model | Metric Tons | Slide Size | Bolster Size |
| MSC-SV-45 | 45 | 560 x 340 x 60 | 850 x 440 x 80 |
| MSC-SV-60 | 60 | 700 x 400 x 70 | 900 x 500 x 80 |
| MSC-SV-80 | 80 | 770 x 420 x 70 | 1000 x 550 x 90 |
| MSC-SV-110 | 110 | 910 x 470 x 80 | 1150 x 600 x 110 |
| MSC-SV-160 | 160 | 990 x 550 x 90 | 1250 x 800 x 140 |
| MSC-SV-200 | 200 | 1130 x 630 x 90 | 1400 x 820 x 160 |
| MSC-SV-260 | 260 | 1250 x 700 x 100 | 1500 x 840 x 180 |
| MSC-SV-315 | 315 | 1300 x 750 x 100 | 1600 x 840 x 180 |
| Model | US Tons | Slide Size (in) | Bolster Size (in) |
| MSC-SV-45 | 50 | 22.0 x 13.4 x 2.4 | 33.5 x 17.3 x 3.1 |
| MSC-SV-60 | 66 | 27.6 x 15.7 x 2.8 | 35.4 x 19.7 x 3.1 |
| MSC-SV-80 | 88 | 30.3 x 16.5 x 2.8 | 39.4 x 21.7 x 3.5 |
| MSC-SV-110 | 121 | 35.8 x 18.5 x 3.1 | 45.3 x 23.6 x 4.3 |
| MSC-SV-160 | 176 | 39.0 x 21.7 x 3.5 | 49.2 x 31.5 x 5.5 |
| MSC-SV-200 | 220 | 44.5 x 24.8 x 3.5 | 55.1 x 32.3 x 6.3 |
| MSC-SV-260 | 287 | 49.2 x 27.6 x 3.9 | 59.1 x 33.1 x 7.1 |
| MSC-SV-315 | 347 | 51.2 x 29.5 x 3.9 | 63.0 x 33.1 x 7.1 |
