Straight Sided Press
SINGLE POINT PRESS - MECHANICAL PRESS
STRAIGHT SIDED PRESS

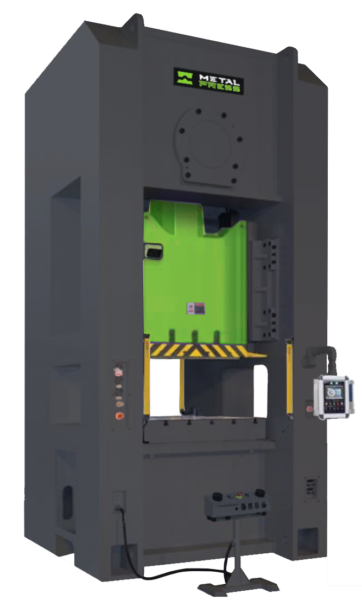

The MSE Series Single Point Straight Sided Mechanical Press is engineered for precision stamping and forming applications that demand stability and strength. Its rigid straight-sided frame minimizes deflection under load, while the single-crankshaft drive provides consistent tonnage and accuracy at high production speeds. Designed for durability and repeatable performance, the MSE Series is ideal for automotive, appliance, and general metalworking industries requiring reliable mass production.
GET PARTS ANYWHERE
Open Source Control System
Our control systems are made with open source, readily available components. We use no custom-made OEM parts.
IMPROVED SERVICE LIFE
High Fequency Quenching
We use a high frequency quenching on our slide guides which reaches over HRC 48. Rail grinding is above RA 0.4 and the average flatness is 0.03 mm/m2. The result is reduced wear, sustained precision and longer service life.
STRENGTH AND WEAR RESISTANCE
Bronze Worm Gear
Bronze worm gears reduce the probability of seizure and greatly reduce the process of die adjustment. The bronze-copper alloy (ZQSN10-1) extend the service life when compared to cast iron worm gears.
MORE STAMPING
Less Seizing
We use a sintered TM-3 copper alloy ball seat as opposed to cast iron. The TM-3 copper alloy has a surface strength of 1000 kgf/C m2. This alloy reduces the probability of seizure and at the same time extends the service life of this part.
LESS WEAR AND TEAR
Copper Sleeves
The all bronze-copper alloy sleeves are made of Tin, Phosphorus Bronze ZQSN10-1 and are about 1.5 times stronger then just copper BC6. The result is reduced wear.
STRONGER AND BIGGER
Hardened Crankshaft
Our crankshafts are made of high strength 42 CrMo alloy and are larger than most. They are forged, heat treated and inspected for flows. The result is that the strength is 1.3 times higher than that of 45 steel and breaking is reduced.
HARDENED AND STRONGER
Chromium Plated Thimble
Our thimbles are chromium plated with a surface between RA 0.4 and RA 0.8. They are then hardened to HRC 48. This provides an excellent oil seal to ensure seal life.
LESS WEAR ON TOOTH SURFACES
Hardened Gear Shaft
The gear shaft is made of high strength 42CrMo alloy and all tooth surfaces are treated with intermediate frequency which increases hardness. The advantage of this is less wear on tooth surfaces and higher meshing precision.
IMPROVED SERVICE LIFE
High Frequency Quenched Gear Drive
We use a high frequency quenching on our gear drives which reaches over HRC 48. Rail grinding is above RA 0.4 and the average flatness is 0.03 mm/m2. The result is reduced wear, sustained precision and longer service life.
SAFETY LIGHT CURTAINS
Worker Safety Should Not Be An Option For A Press
We are very serious about worker safety. That is why all our presses include full size CAT4 safety light curtains as a standard feature. The light curtains work along with the other safety features to ensure worker safety at all times.
MORE OIL, LESS WEAR
Bigger Oil Piping
We use 8 mm diameter copper lubrication pipes to ensure proper lubrication on all critical points. The larger and higher gauge pipes reduce the possibility of breaking and ensure a constant flow of oil.
OPTIMIZED STRUCTURE
Finite Element Analysis (FEA)
Through SolidWorks finite element analysis (FEA) we optimize the press structure and refine the design for maximum performance.
HIGHEST RETURN ON INVESTMENT
We Give You More Press For Your Money.
To be competitive today’s economy requires that manufactures run their operations more efficiently and cost effectively than ever before. We offer the highest ROI (return on investment) in the industry. MetalPress gives you high-quality products for a reasonable investment and with more features than any other company. Simply put, we give you the most bang for your buck!
REMOTE SERVICE
We Can Remotely Troubleshoot Your Stamping Press from Our Facility.
Our Single Point Straight Sided Presses include a Remote Connectivity Unit which allows our press technicians to remotely check the performance of the press, make any needed changes to the program or HMI, or to troubleshoot it directly from our service center. The customer is only required to connect the unit to the Internet via an Ethernet cable. We handle the rest.
HIGH QUALITY COMPONENTS
We Use Brand Name Components You Know, Already Use and Trust.
We use only the finest quality components that are open source, and readily available locally in your area, or from our online parts store. We do not use any impossible to find proprietary components.
INDUSTRY 4.0 REMOTE MONITORING
Remotely Monitor Your Stamping Press Performance From Any Device.
As an option, all our presses are available with Industry 4.0 remote performance monitoring units which feature a custom dashboard. You can not only monitor press performance, but you can be notified before an issue occurs. Included are condition based maintenance reminders and shift performance statistics. Minimize impact of emergencies and maximize press uptime, and productivity. Monitor what is going on with the stamping press and your production efficiency from any device, anywhere in the world.
EIGHT STANDARD SIZES
Flexible Range of Applications.
Available from 110 tons all the way up to 600 tons
| Model | Metric Tons | Slide Size (mm) | Bolster Size (mm) |
| MSE-110 | 110 | 650 x 500 | 800 x 600 |
| MSE-160 | 160 | 700 x 600 | 850 x 700 |
| MSE-200 | 200 | 750 x 700 | 900 x 800 |
| MSE-250 | 250 | 800 x 800 | 1000 x 900 |
| MSE-300 | 300 | 900 x 800 | 1100 x 1000 |
| MSE-400 | 400 | 1000 x 800 | 1200 x 1000 |
| MSE-500 | 500 | 1200 x 900 | 1400 x 1000 |
| MSE-600 | 600 | 1200 x 900 | 1400 x 1000 |
| Model | US Tons | Slide Size (in) | Bolster Size (in) |
| MSE-110 | 120 | 25.6 x 19.7 | 31.5 x 23.6 |
| MSE-160 | 176 | 27.6 x 23.6 | 33.5 x 27.6 |
| MSE-200 | 220 | 29.5 x 27.6 | 35.4 x 31.5 |
| MSE-250 | 275 | 31.5 x 31.5 | 39.4 x 35.4 |
| MSE-300 | 330 | 35.4 x 31.5 | 43.3 x 39.4 |
| MSE-400 | 440 | 39.4 x 31.5 | 47.2 x 39.4 |
| MSE-500 | 550 | 47.2 x 35.4 | 55.1 x 39.4 |
| MSE-600 | 660 | 47.2 x 35.4 | 55.1 x 39.4 |
