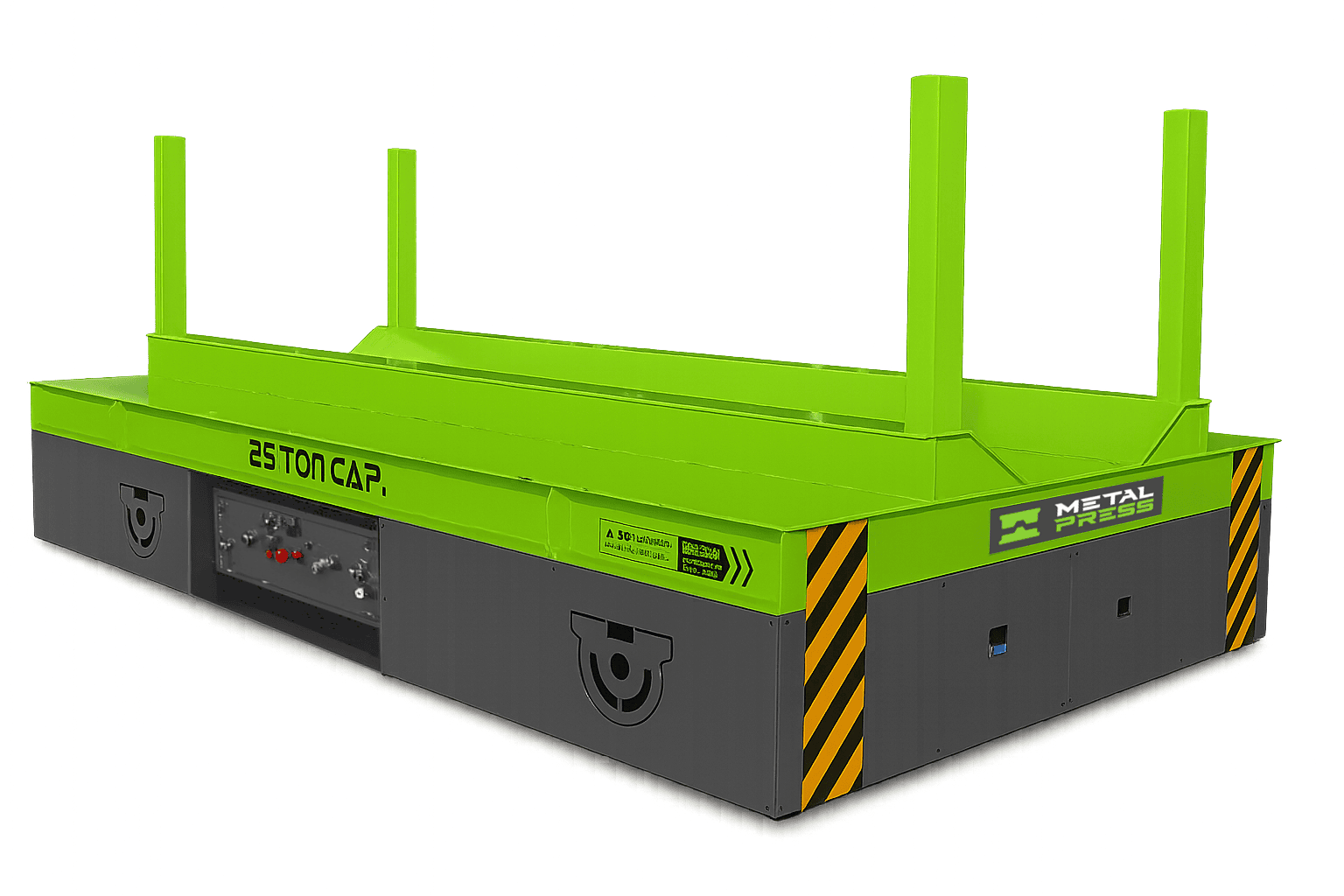

COIL CART & COIL TRANSFER CART
COIL & ROLL TRANSFER CART (TRANSPORTER)
- 2–80 metric tonne capacities across twelve MCC models
- All-electric, battery-powered travel with no exhaust emissions
- Trackless, multi-directional or rail-guided movement available
- Wireless remote control for safer operator positioning
- Heavy-duty welded construction for industrial coil loads
- Custom decks, V-cradles and line handoffs available
GET A QUICK COIL TRANSFER CART QUOTE
Send us your coil and travel details and we’ll help size the correct MCC cart.
HELP US SIZE THE RIGHT COIL TRANSFER CART FOR YOU
For the fastest recommendation, include:
Maximum Coil Weight
Heaviest coil, including any support fixture
Coil OD, ID & Width
Maximum and minimum dimensions
Pickup & Discharge Heights
Storage, staging and line handoff elevations
Travel Route & Distance
Aisle width, turns, stopping points and floor condition
Required Travel Type
Trackless, multidirectional, omnidirectional or rail-guided
Duty Cycle & Charging Window
Loaded trips per shift and available charging time
Not sure of every specification?
No problem. Send us what you know and our engineering team can help determine the correct configuration.
MCC-2
78.7 × 55.1 in / 2000 × 1400 mm
Light coil transport
MCC-3
78.7 × 55.1 in / 2000 × 1400 mm
Light-duty coil transport
MCC-5
78.7 × 55.1 in / 2000 × 1400 mm
Medium coil movement
MCC-10
98.4 × 66.9 in / 2500 × 1700 mm
Production material flow
MCC-15
98.4 × 74.8 in / 2500 × 1900 mm
Heavy coil handling
MCC-20
22 US tons / 20 tonnes
98.4 × 74.8 in / 2500 × 1900 mm
Heavy industrial transfer
MCC-25
118.1 × 78.7 in / 3000 × 2000 mm
Heavy-duty coil transfer
MCC-30
118.1 × 78.7 in / 3000 × 2000 mm
High-capacity transfer
MCC-40
44 US tons / 40 tonnes
157.5 × 90.6 in / 4000 × 2300 mm
Large-coil processing
MCC-50
177.2 × 110.2 in / 4500 × 2800 mm
Extreme-duty plant transport
MCC-65
196.9 × 118.1 in / 5000 × 3000 mm
Extra-heavy coil transport
MCC-80
236.2 × 118.1 in / 6000 × 3000 mm
Maximum-capacity coil transport

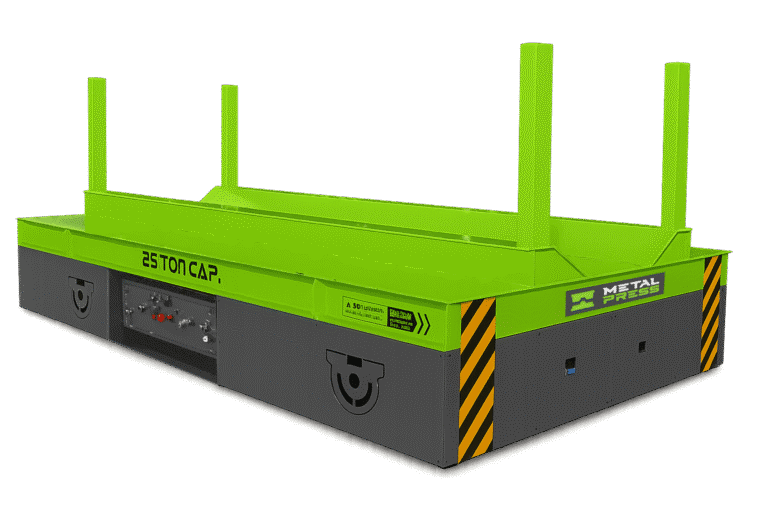

TECHNICAL OVERVIEW OF MCC COIL TRANSFER CARTS
A coil transfer cart is an in-plant material-handling machine that supports and moves a heavy coil between defined pickup and discharge points. The same equipment class may be called a coil transfer car, coil transfer trolley, coil transport cart, coil transporter, coil handling cart, or coil transport cradle. The industrial meaning should be confirmed because “coil car” can also refer to railroad or line-specific equipment.
A dedicated steel coil transfer cart provides a stable support surface, controlled travel, repeatable stopping, and operator control for short in-plant moves. It can reduce repeated forklift or overhead-crane handling between storage, staging, and production while helping protect coil edges and surfaces. Use the heavy-duty coil-handling selection guide to compare the workflow and estimate operational value.
The MCC platform uses a reinforced welded-steel structure, dual direct-drive gear motors, heavy-duty sealed bearings, battery power, wireless remote control, polyurethane wheels, and controlled multidirectional travel. Application-dependent options can include joystick control, lithium batteries, a protective rubber contact surface, LiDAR-based obstacle detection, rail-guided travel, and engineered V-deck or V-cradle support. Standard versus optional scope should be confirmed in the quotation.
HEAVY DUTY CONSTRUCTION
Made to Stand Up to Constant Use.
The reinforced welded-steel structure is designed to limit deflection under the specified coil load. Dual direct-drive gear motors provide controlled powered travel, while heavy-duty sealed bearings support repeatable movement in demanding industrial service.

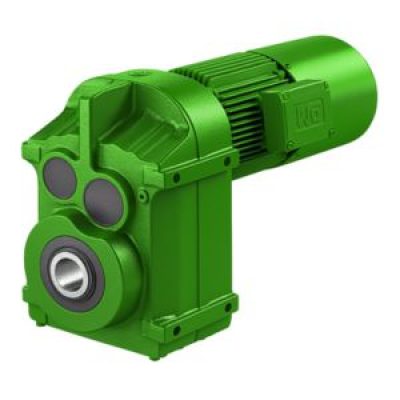

ALL ELECTRIC
Smooth Operation
Dual electric gear motors provide powered travel and controlled manoeuvring. The brake motor and gear reducer support smooth starts, travel and stops. Turning changes the vehicle travel direction; the cart does not perform the MCT upender’s controlled coil-orientation change.
MULTI-DIRECTIONAL OR OMNI-DIRECTIONAL MOVEMENT
Many Directions for Your Various Needs
Our standard 2 wheel multi-directional drive system helps position the coil cart in tight aisles, staging zones, and production cells. For tighter locations with many turns and twists, and for applications requiring critical positioning, our optional 4 wheel omni-directional drive system offers pinpoint positioning and accuracy.
Our free-moving, trackless transfer carts deliver exceptional maneuverability, flexibility, and ease of use.
Standard Movements and Directions
(Multi-Directional)
Optional Movements and Directions
(Omni-Directional )
POLYUREHANE WHEELS
Smooth Ride
Solid polyurethane wheels combine high load capacity, durability, traction, and floor protection. They resist many industrial contaminants, reduce travel noise, and support smooth movement of heavy coil loads.
STANDARD REMOTE WIRELESS CONTROL
Safe Operation at a Distance
Wireless remote control is standard, allowing the operator to command travel and positioning from a safer viewing location. An optional joystick pendant supports precise multidirectional movement during coil pickup, staging, and line delivery.
SAFETY FIRST
Lidar Laser Scanner
The LiDAR sensor scans the surrounding area with laser light and measures reflected signals to build a two-dimensional map. The control system can use this data for obstacle detection, navigation support, distance monitoring, and safer travel around equipment and personnel.

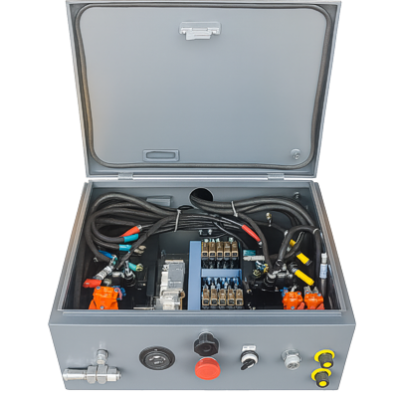

SIMPLIFIED CONTROL PANEL
Easy Access
The slide-out control panel simplifies access to electrical and control components, helping technicians inspect, troubleshoot, and maintain the system without unnecessary disassembly.

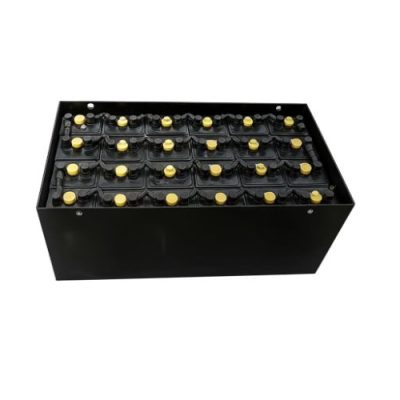

STANDARD LEAD ACID BATTERIES
Durable and dependable power
Standard lead-acid batteries provide proven, cost-effective power for heavy-duty transfer duty. Battery capacity and charging arrangements should be selected from travel distance, loaded cycles per shift, dwell time, opportunity charging, and required reserve.
STANDARD FEATURES INCLUDED
Swipe to compare specifications.
| Item | quotation |
| Fast Operation | Included |
| Easy to Use | Included |
| Simple to Maintain | Included |
| Safer to Use Than Conventional Methods | Included |
| Can be Used for Other Heavy Loads Like Rolls | Included |
| Common Charger Voltage 208 – 220V, 60 Hz, 1 ph | Included |
HIGH QUALITY COMPONENTS
We Use Brand Name Components You Know, Already Use and Trust.
We use only the finest quality components that are open source, and readily available locally in your area, or from our online parts store.We do not use any impossible to find proprietary components.
HIGHEST RETURN ON INVESTMENT
We Give You More Value for Your Money.
Return on investment depends on the current handling method, labor time, crane or forklift availability, coil damage, changeover delays, maintenance, and production losses. MetalPress can help compare those costs with a dedicated MCC transfer workflow and define the assumptions used in a payback calculation.

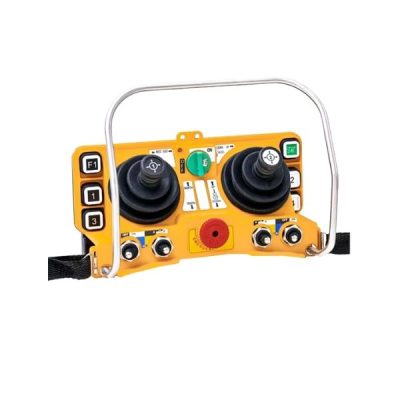

JOYSTICK CONTROL
Ergonomic control
The optional joystick pendant provides ergonomic control for smooth multidirectional travel and fine positioning. It can be worn with the supplied neck strap so the operator can maintain a clear view of the coil, route, and handoff point.

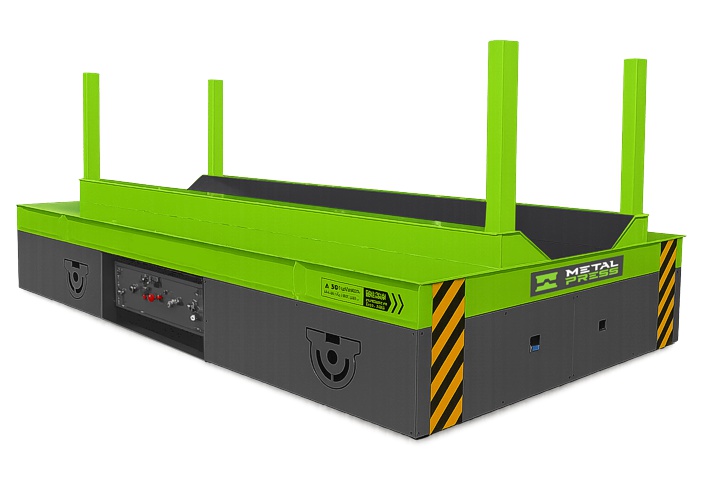

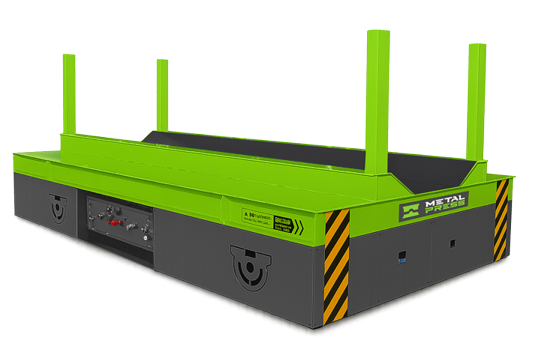

RUBBER OR PLASTIC COVER
Added Load Protection
An optional protective rubber or plastic cover adds slip resistance, cushions contact, reduces vibration and noise, and helps protect coil surfaces from impact or abrasion during movement.

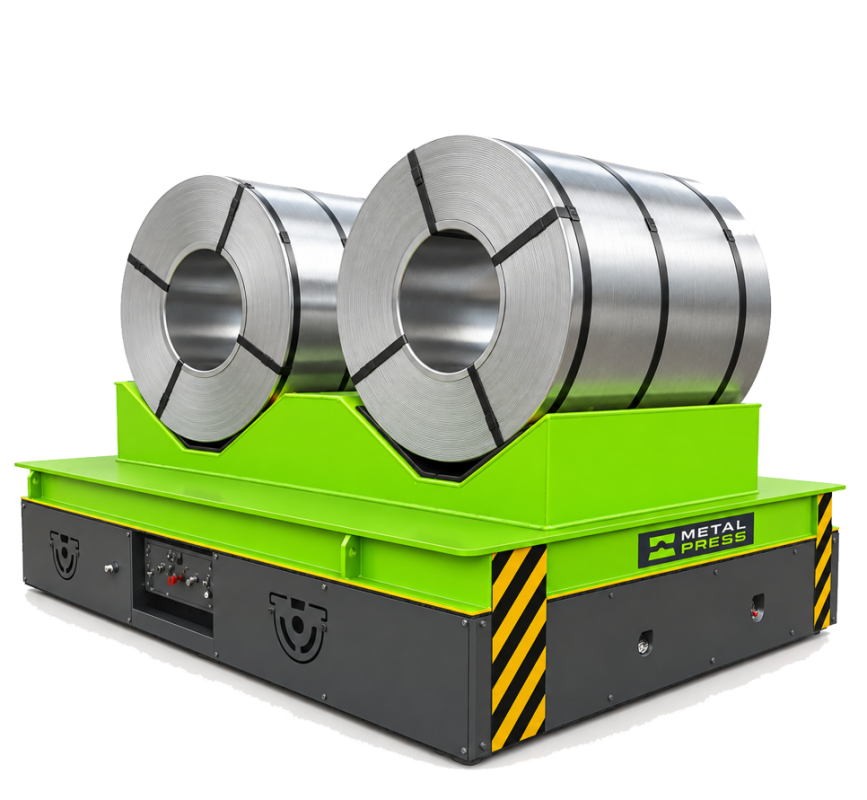

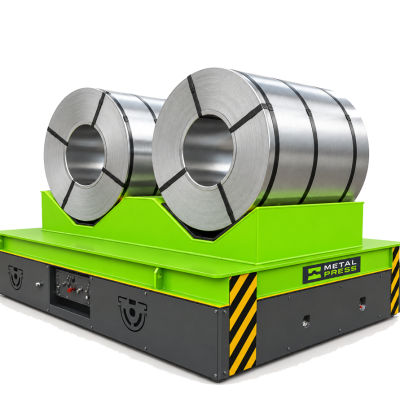

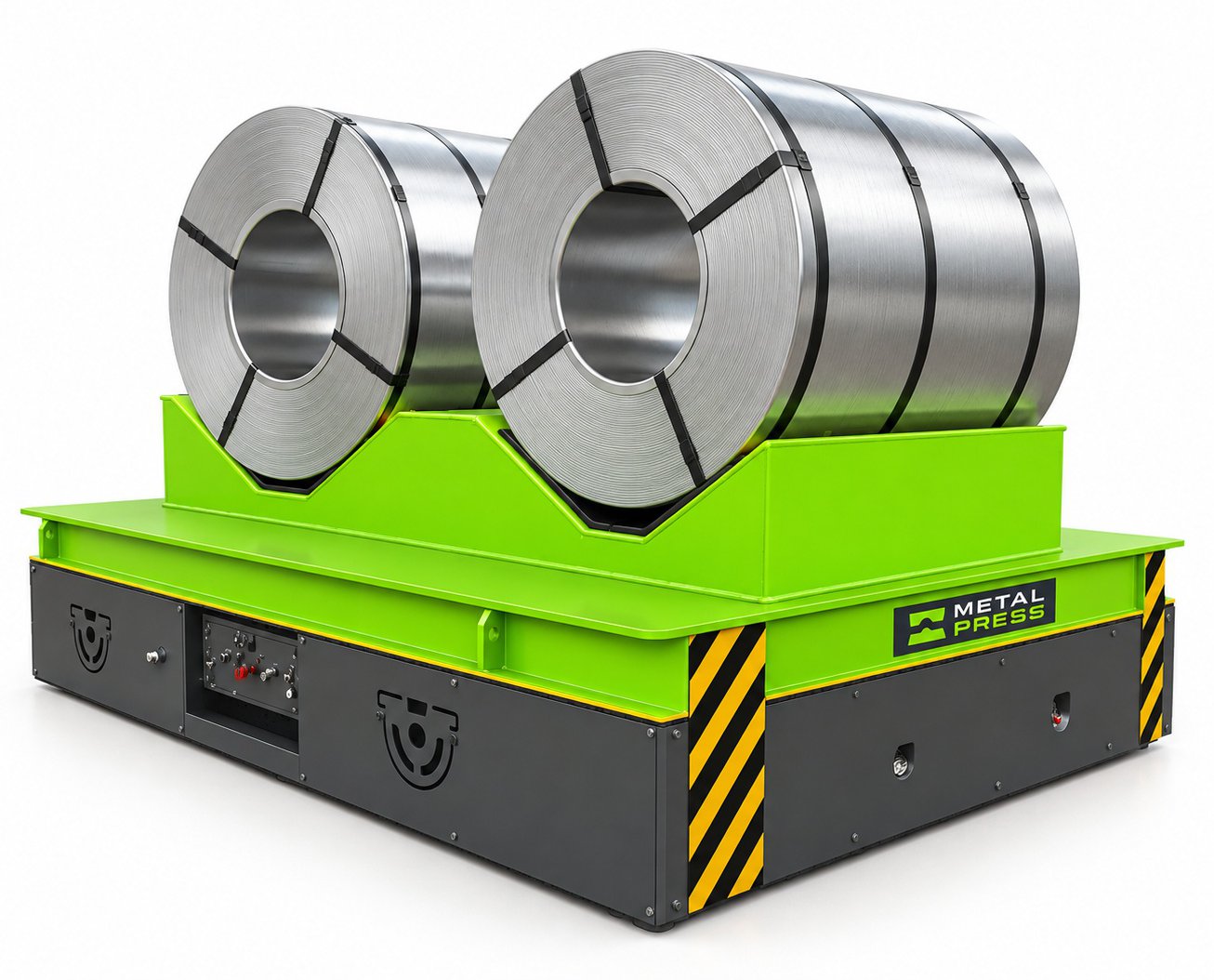

EYE TO THE SIDE
More Flexibility
As an option, our coil or roll transfer carts can be ordered with eye to the side load orientation.

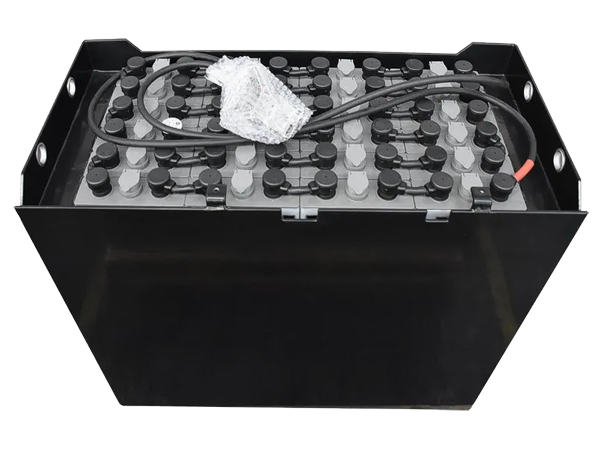

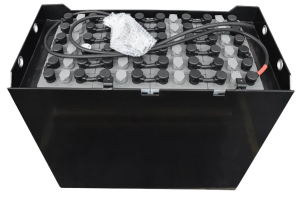

LITHIUM BATTERY
Faster Charging
Our optional lithium battery providess longer service life, faster charging, higher energy efficiency, and reduced routine maintenance. They can be useful when the cart has frequent cycles, limited charging time, or demanding availability targets.

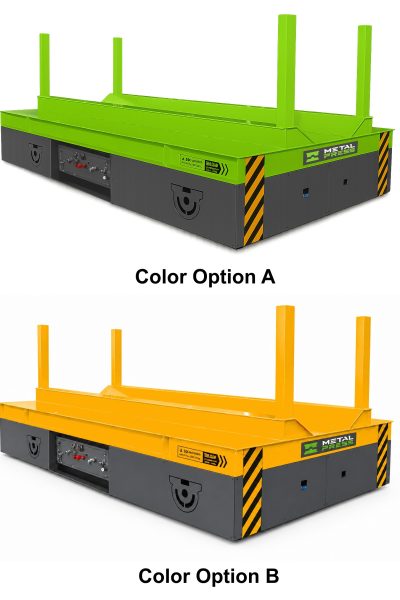

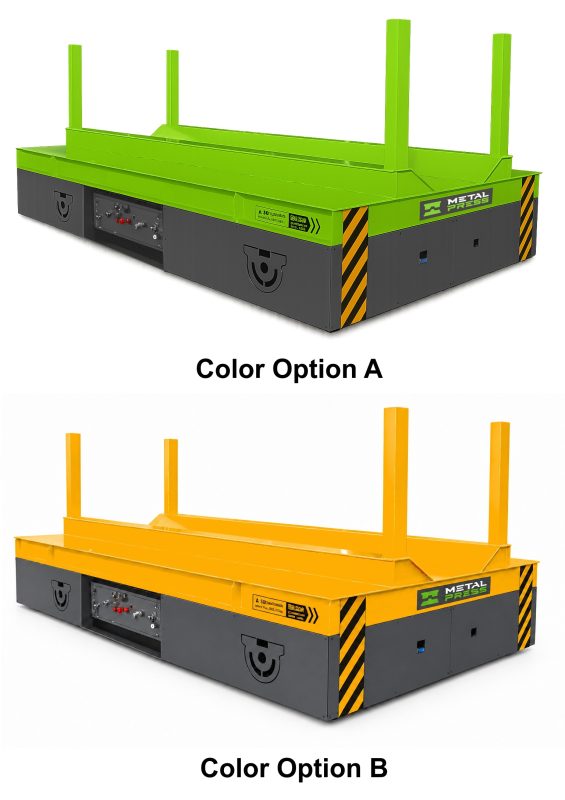

COLOR OPTIONS
Two standard colors are avaliable.
TWELVE STANDARD SIZES
Available from 2 tonnes all the way up to 80 tonnes.
Table sizes are customizable to meet your specific project requirements.
| SPECIFICATIONS – US STANDARD | |||
| Model | Load Capacity (US tons) | Table Size (A) x (B) (in) | Table Height (H) (in) |
| MCC-2 | 2.2 | 78.7 x 55.1 | 17.1 |
| MCC-3 | 3.3 | 78.7 x 55.1 | 17.1 |
| MCC-5 | 5.5 | 78.7 x 55.1 | 17.1 |
| MCC-10 | 11 | 98.4 x 66.9 | 17.1 |
| MCC-15 | 16.5 | 98.4 x 74.8 | 21.7 |
| MCC-20 | 22 | 98.4 x 74.8 | 21.7 |
| MCC-25 | 27.6 | 118.1 x 78.7 | 25.6 |
| MCC-30 | 33 | 118.1 x 78.7 | 25.6 |
| MCC-40 | 44 | 157.5 x 90.6 | 29.5 |
| MCC-50 | 55 | 177.2 x 110.2 | 34.3 |
| MCC-65 | 71.7 | 196.9 x 118.1 | 34.3 |
| MCC-80 | 88.2 | 236.2 x 118.1 | 37.4 |
| SPECIFICATIONS – METRIC STANDARD | |||
| Model | Load Capacity (tonnes) | Table Size (A) x (B) (mm) | Table Height (H) (mm) |
| MCC-2 | 2 | 2000 x 1400 | 435 |
| MCC-3 | 3 | 2000 x 1400 | 435 |
| MCC-5 | 5 | 2000 x 1400 | 435 |
| MCC-10 | 10 | 2500 x 1700 | 435 |
| MCC-15 | 15 | 2500 x 1900 | 550 |
| MCC-20 | 20 | 2500 x 1900 | 550 |
| MCC-25 | 25 | 3000 x 2000 | 650 |
| MCC-30 | 30 | 3000 x 2000 | 650 |
| MCC-40 | 40 | 4000 x 2300 | 750 |
| MCC-50 | 50 | 4500 x 2800 | 870 |
| MCC-65 | 65 | 5000 x 3000 | 870 |
| MCC-80 | 80 | 6000 x 3000 | 950 |
Related Projects & Posts
HOW TO CHOOSE HEAVY-DUTY COIL HANDLING EQUIPMENT FOR STEEL PROCESSING
Use this guide to evaluate heavy-duty coil handling equipment for steel processing, coil movement, staging, storage, and press feeding.
THE GRAVITY-DEFYING ROI: A COMPREHENSIVE GUIDE TO DIE UPENDERS AND COIL TIPPERS INDUSTRIAL APPLICATIONS
Compare industrial applications where upenders, tippers, and heavy-load handling systems improve safety, flow, and return on investment.
COIL TIPPER VS COIL UPENDER VS COIL INVERTER: WHICH ONE FITS YOUR PLANT?
Compare coil tippers, coil upenders, and coil inverters to choose the best rotation method for your plant layout and coil flow.
HYDRAULIC VS MECHANICAL VS ELECTRIC COIL UPENDERS: WHAT BUYERS SHOULD COMPARE
Compare hydraulic, mechanical, and electric upender designs for load capacity, control, maintenance, and production requirements.
Specify the Coil, Route, and Handoffs Before Selecting Capacity
Start with the maximum and minimum coil weight, OD, ID, width, center of gravity, contact-surface requirements, pickup and discharge heights, route, floor condition, cycles per shift, charging window, stopping accuracy, and upstream or downstream equipment. Then choose V-deck or V-cradle support, retention, wheel material, free-moving or rail-guided travel, battery technology, wireless or joystick control, LiDAR, safeguarding, and automation. Use the in-plant coil movement applications page to map operational handoffs, the coil transfer-system engineering guide for throughput and buffer calculations, and the heavy-duty coil-handling guide to compare forklift, crane, and dedicated-cart workflows.
The MetalPress MCC Series is a heavy-duty, all-electric, battery-powered coil transfer cart and coil transfer car for controlled movement of steel, aluminum, and specialty-metal coils inside industrial facilities. This motorized coil-handling machine moves a supported coil between storage, staging, slitting, cut-to-length, press-feeding, decoiler, uncoiler, and production areas.
Equivalent buyer terms include steel coil transfer cart, steel coil transfer car, motorized coil transfer cart, electric coil transfer cart, coil transfer trolley, coil transport cart, coil transporter, coil handling cart, and coil transport cradle. The MCC can be engineered for free-moving trackless travel, multidirectional or omnidirectional positioning, or a rail-guided route when the application requires it.
As a custom industrial coil transfer cart manufacturer and supplier, MetalPress sizes the machine around coil weight, outside diameter, width, center of gravity, deck or V-cradle geometry, loading height, travel distance, floor condition, controls, battery duty, and required line handoffs. Request a coil transfer cart quote after these inputs are defined; the final equipment and installation scope depend on capacity, route, deck, power, controls, safeguards and integration.
