Spotting Press Mold Tryout Servo Press

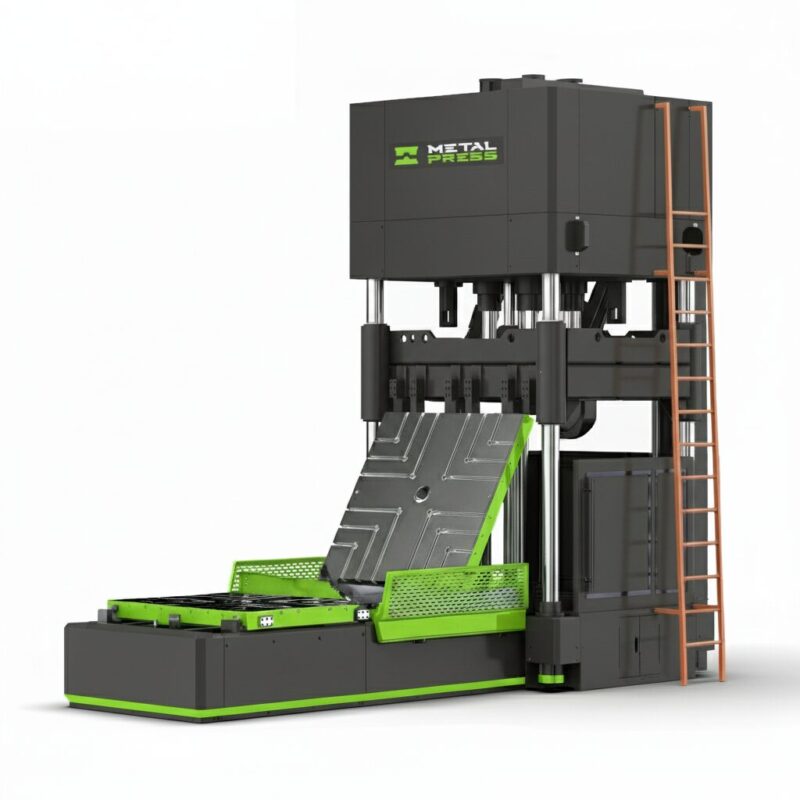

SPOTTING PRESS & MOLD TRYOUT PRESS - SERVO TYPE
Our MSP-SB-SV Series Spotting Servo Press (also called a Mold Tryout Press) is specifically designed for accurate mold and die spotting, tryout, and adjustment. Built on a rigid straight-sided frame, it incorporates servo-hydraulic technology to provide precise, programmable motion control and consistent pressure throughout the stroke. This combination ensures safer mold handling, reliable alignment, and efficient part verification, making it an essential tool for mold manufacturing and maintenance operations.
TECHNICAL OVERVIEW
A servo spotting press provides unmatched control, safety, and precision during mold tryout. Standard hydraulic presses lack the fine, low‑speed control required for delicate alignment work, while mechanical presses cannot provide the variable motion profiles needed for mold testing. Servo‑hydraulic technology allows operators to move the platen slowly and smoothly, stop at any position, and apply controlled force for checking parting lines and shut‑height. The system’s programmable motion enables repeatable mold‑closing sequences, improved safety during manual inspection, and reduced risk of mold damage. For facilities that require accurate mold verification and efficient tryout cycles, a servo spotting press is the superior choice.
A servo‑hydraulic spotting press combines precision motion control with a rigid, high‑accuracy structure to support mold alignment, testing, and verification. Key features typically include servo‑controlled platen movement, low‑speed spotting modes, precise parallelism, and programmable closing profiles. Large, accessible platens allow technicians to safely inspect parting lines, ejector systems, slides, lifters, and internal mold components. The servo system provides smooth, vibration‑free motion, improving safety and reducing the risk of mold damage. Additional benefits include reduced setup time, improved mold accuracy, and faster transition from tryout to full production. These capabilities make servo spotting presses essential for mold makers, injection‑molding plants, and tool maintenance departments.
TWO VERSIONS AVAILABLE
Flexibility To Meet Your Needs.
The MSP-SB-SV Series is also available without a side bolster table.
HIGHEST RETURN ON INVESTMENT
We Give You More Press For Your Money.
To be competitive in today’s economy requires that manufactures run their operations more efficiently and cost effectively than ever before. We offer the highest ROI (return on investment) in the industry. MetalPress gives you high-quality products for a reasonable investment and with more features than any other company. Simply put, we give you the most value for your money!
IT'S ALL ABOUT CONTROL
Greater Control Means Greater Efficiency.
Our Spotting Press Mold Tryout Servo Press features advance Safety PLC control with large color HMI screens with easy to read graphics - all at no extra charge. See all press functions and parameters on a clear visual layout, and easily change anything on the fly. Now that is real control.
HIGH QUALITY CONTROL SYSTEM
Siemens PLC & HMI.
This spotting press features a top of the line Siemens PLC and HMI control system. Tried and tested, Siemens is available globally and offers excellent performance and service.
PLATEN PARALLELISM SYSTEM
Ensures True Squareness In Real Time.
System consists of four encoders located at the four corners of the moving platen. The PLC screen continuously shows the position of each corner thus allowing for true parallelism during each stroke. The system has a die / mold protection feature. If the difference is more than the setting that has been entered the machine will stop immediately. This means that if a worker has left anything such as a tool inside the die / mold when the moving platen touches the tool the machine will stop immediately. This function helps to protect the die / mold before damage occurs.
SERVO DRIVE SYSTEM
Greater Accuracy and Efficiency.
Our servo system allows for greater accuracy of the moving platen stopping position and offers very significant energy savings.
DUAL LIGHT CURTAINS
Maximum Worker Safety.
We use two sets of CAT4 light curtains to ensure the press stops immediately if anyone enters or puts a limb in the pressing area.
DYNAMIC EJECTION CHECKING DEVICE
Added Convenience.
We include a dynamic ejector checking device to test if the mold / die springs are working correctly.
HIGH QUALITY COMPONENTS
We Use Brand Name Components You Know, Already Use and Trust.
We use only the finest quality components that are open source, and readily available locally in your area, or from our online parts store. We do not use any impossible to find proprietary components.
DUAL SAFETY RATCHET BARS
When It Comes to Safety Two Is Always Better Than One.
Our die spotting presses feature dual safety ratchet bars which add to worker safety.
REMOTE SERVICE
We Can Remotely Troubleshoot Your Die Spotting Press From Our Facility.
Our die spotting presses include a Remote Connectivity Unit which allows our press technicians to remotely check the performance of the press, make any needed changes to the program or HMI, or to troubleshoot it directly from our service center. The customer is only required to connect the unit to the Internet via an Ethernet cable. We handle the rest.
INDUSTRY 4.0 REMOTE MONITORING
Remotely Monitor Your Die Spotting Press Performance From Any Device.
As an option, all our die spotting presses are available with Industry 4.0 remote performance monitoring units which feature a custom dashboard. You can not only monitor press performance, but you can be notified before an issue occurs. Included are condition based maintenance reminders and shift performance statistics. Minimize impact of emergencies and maximize press uptime, and productivity. Monitor what is going on with the die spotting press and your production efficiency from any device, anywhere in the world.
SEVENTEEN STANDARD SIZES
Very Large Range to of Models to Accommodate any Die or Mold
Available from 75 tons all the way up to 660 tons the MSP-SB-SV Series of 4 post hydraulic die spotting presses can handle any die or mold project you may have.
| Standard | US / Imperial | Metric | ||
| Model | Clamping Force | Platen Size | Clamping Force | Platen Size |
| MSP-SB-SV-75 | 75 Tons | 39” x 31” | 70 Tonnes | 1000 x 800 mm |
| MSP-SB-SV-130 | 130 Tons | 55” x 43” | 120 Tonnes | 1400 x 1100 mm |
| MSP-SB-SV-175 | 160 Tons | 63” x 51” | 160 Tonnes | 1600 x 1300 mm |
| MSP-SB-SV-220 | 220 Tons | 70.8” x 63” | 200 Tonnes | 1800 x 1500 mm |
| MSP-SB-SV-300 | 300 Tons | 78.7” x 63” | 280 Tonnes | 2000 x 1600 mm |
| MSP-SB-SV-350 | 350 Tons | 86.6” x 70.8” | 320 Tonnes | 2200 x 1800 mm |
| MSP-SB-SV-385 | 385 Tons | 118” x 98” | 350 Tonnes | 2500 x 2000 mm |
| MSP-SB-SV-440 | 440 Tons | 118” x 78.7” | 400 Tonnes | 3000 x 2000 mm |
| MSP-SB-SV-440 | 440 Tons | 118” x 98.4” | 400 Tonnes | 3000 x 2500 mm |
| MSP-SB-SV-440 | 440 Tons | 137.8” x 98.4” | 400 Tonnes | 3500 x 2000 mm |
| MSP-SB-SV-550 | 550 Tons | 118” x 78.7” | 500 Tonnes | 3000 x 2000 mm |
| MSP-SB-SV-550 | 550 Tons | 122” x 82.6” | 500 Tonnes | 3100 x 2100 mm |
| MSP-SB-SV-550 | 550 Tons | 137.8” x 98.4” | 500 Tonnes | 3500 x 2500 mm |
| MSP-SB-SV-550 | 550 Tons | 157” x 98.4” | 500 Tonnes | 4000 x 2500 mm |
| MSP-SB-SV-660 | 660 Tons | 137.8” x 98.4” | 600 Tonnes | 3500 x 2500 mm |
| MSP-SB-SV-660 | 660 Tons | 157” x 98.4” | 600 Tonnes | 4000 x 2500 mm |
| MSP-SB-SV-660 | 660 Tons | 157” x 118” | 600 Tonnes | 4000 x 3000 mm |
Applications for Servo-Hydraulic Spotting & Mold Tryout Press
Servo‑hydraulic powder compaction presses are ideal for producing high‑precision PM components that require tight dimensional tolerances and uniform density. The programmable motion profiles allow operators to fine‑tune compaction speed, force, dwell, and ejection parameters for each material and geometry. This results in consistent green‑part density, reduced cracking, and improved dimensional stability. Manufacturers rely on servo compaction presses for gears, bushings, structural parts, and complex shapes used across automotive, industrial, and consumer applications.
Spotting presses are essential for testing mold movement, including slides, lifters, ejector systems, and core pulls. The servo‑hydraulic system provides smooth, vibration‑free motion that allows technicians to observe internal mechanisms safely and accurately. This ensures all components operate correctly before the mold is installed in a production press. Tryout on a servo spotting press reduces trial‑and‑error adjustments and shortens time‑to‑production.
During mold finishing and polishing, technicians often need to manually inspect and hand‑spot surfaces. A servo spotting press provides a stable, controlled environment for this work. The platen can be positioned at any height, allowing safe access to cavity and core surfaces. The rigid frame and precise parallelism ensure accurate spotting marks, improving mold fit and reducing rework. This application is critical for high‑precision molds used in automotive, medical, and consumer products.
Complex molds require verification of internal mechanisms before production. A servo spotting press allows slow, controlled cycling of the mold so technicians can observe ejector pins, lifters, slides, and core actions in real time. This helps identify timing issues, sticking components, or misalignment early in the process. Controlled testing reduces the risk of mold damage and ensures reliable performance once the mold is installed in a production press.
Toolrooms use servo spotting presses for mold repair and re‑qualification after maintenance or component replacement. The press provides the precision needed to verify that repaired surfaces, new inserts, or adjusted components fit and function correctly. By confirming alignment and movement before returning the mold to production, facilities reduce downtime and prevent costly press‑side troubleshooting.
Large molds — especially those with multiple slides, lifters, or complex parting lines — require precise, controlled tryout. A servo spotting press offers the rigidity, platen size, and motion control needed to handle large tooling safely. The ability to move slowly, stop anywhere in the stroke, and apply controlled force makes it ideal for validating complex molds used in automotive, appliance, packaging, and industrial applications.
Frequently Asked Questions About Servo-Hydraulic Spotting & Mold Tryout Press
A servo‑hydraulic spotting press provides far greater precision, control, and safety during mold tryout and alignment. Standard hydraulic presses cannot deliver the ultra‑slow, smooth, and programmable motion required for delicate spotting work. Servo technology allows the platen to move at extremely low speeds, stop at any position, and apply controlled force for checking parting lines and shut‑height. This reduces the risk of mold damage, improves alignment accuracy, and shortens the time required to validate molds before production.
Servo spotting presses are ideal for injection molds, compression molds, blow‑molding tools, multi‑component molds, and tooling with slides, lifters, or complex parting lines. They are especially valuable for large molds and high‑precision tooling used in automotive, medical, packaging, and consumer‑product manufacturing. The servo‑controlled platen movement ensures accurate alignment and safe manual inspection, making the press suitable for both simple and highly complex mold designs.
The servo‑hydraulic system provides smooth, vibration‑free motion and precise control of platen position, allowing technicians to close the mold slowly and evenly. This makes it easy to identify high spots, verify parting‑line contact, and confirm shut‑height accuracy. The rigid frame and precision guidance system maintain parallelism across the platen, ensuring the mold closes squarely. These capabilities reduce rework, improve mold fit, and ensure the tool is production‑ready before installation in a molding press.
Yes — spotting presses are essential for mold repair and maintenance. After replacing inserts, polishing surfaces, or adjusting internal components, technicians use the spotting press to verify alignment, test movement, and confirm proper function. The servo‑controlled motion allows safe manual inspection and precise spotting of surfaces. This ensures the mold is fully re‑qualified before returning to production, reducing downtime and preventing press‑side troubleshooting.
Yes — servo‑hydraulic spotting and mold tryout presses are available to customers throughout the United States, Canada, and Mexico. Mold makers, toolrooms, and injection‑molding facilities across North America rely on these presses for alignment, tryout, repair, and verification of high‑precision molds. Regional availability ensures faster delivery, dependable technical support, and access to replacement parts. Systems can be configured with various platen sizes, tonnages, and control packages to match specific tooling requirements.
