A 30-Ton Journey: From Expo Encounter to a Complete Die Upender Assembly
The Beginning — A Connection at the Industrial Expo
Every great project starts with a conversation. At a recent industrial manufacturing expo, our team showcased the latest die handling equipment — including 30 ton die upenders and industrial die flippers designed for safe, efficient die rotation in heavy production environments.
Among the visitors was a representative from a plastics manufacturing company in South Deerfield, Massachusetts (USA). Their operation involved large molds and dies that needed regular flipping during production. Manual turnover was time-consuming and posed safety risks for operators.
After seeing our die upender demonstration, they were impressed by the efficiency and stability of the system. A few days later, they reached out to us through our website’s information request form, marking the start of a collaborative journey toward a customized handling solution.
👉 View our Die Upender products MDR Series and fill the request for information form.
Die Upender Applications
Die upenders are widely used across industrial sectors that require safe, controlled, and efficient rotation of heavy molds, dies, and tooling. In metal stamping plants, die upenders support fast die changeovers by allowing operators to flip large press dies for maintenance, inspection, and installation. In plastics and injection molding facilities, mold upenders are essential for turning heavy molds during cleaning, repair, and setup processes. Automotive manufacturing operations rely on industrial die flippers to handle large body panel dies and tooling with precision and stability. In foundries and casting plants, die upenders are used to rotate mold assemblies and core boxes safely. Tool and die shops utilize die turning equipment for assembly, refurbishment, and quality inspection. Additionally, die upenders are applied in aerospace, heavy equipment manufacturing, appliance production, and industrial maintenance departments where controlled load rotation, improved operator safety, reduced crane dependency, and optimized material handling workflows are critical.
Listening and Defining — Finding the Right Specifications
Once their inquiry arrived, our sales technicians and engineers scheduled a detailed meeting to understand their needs. We discussed their die dimensions, lifting requirements, available floor space, and integration with their existing press line.
Together, we defined the ideal configuration for a 30 ton die upender tailored to their plastics molding process. The priorities were clear:
Safe and stable die turnover without damaging sensitive mold surfaces
Smooth hydraulic operation for precise positioning
Compact footprint to fit seamlessly within their production area
Every detail — from the hydraulic pump selection to the control system — was carefully chosen to support consistent, reliable performance in a demanding production environment.
Key Features of the 30 Ton Die Upender
The MetalPress MDR Series 30 Ton Die Upender is a heavy-duty industrial die handling solution engineered for safe, efficient, and precise mold and die rotation in high-demand manufacturing environments. Designed as a high-capacity die flipper and mold upender, this machine is ideal for plastics manufacturing, metal stamping, injection molding, automotive tooling, and press shop operations that require reliable die turnover up to 30 tons (60,000 lbs). With a reinforced steel frame, electric-drive rotation system, precision gear motor, and customizable table configurations, the MDR Series die upender delivers smooth 90-degree and optional 180-degree rotation while reducing downtime, improving workplace safety, and eliminating risks associated with forklifts and overhead cranes. As a leading industrial die upender manufacturer, MetalPress Machinery provides custom-built die handling equipment, coil upenders, mold rotators, and heavy load turning solutions optimized for productivity, durability, and long-term performance.
The MDR Series 30 Ton Die Upender is designed for safety, precision, and performance in demanding mold and die handling operations. Every component and feature reflects our focus on reliability, operator safety, and long-term efficiency.
Heavy-Duty Construction
Built with a reinforced welded steel frame, the 30 ton die upender delivers consistent performance in high-demand industrial environments. The gear-motor drive system, combined with a dual-chain sprocket mechanism, ensures smooth, stable rotation without jerks or imbalance. Heavy-duty sealed bearings beneath the load rollers allow precise movement and reliable support for dies weighing up to 30 tons.
Table and Load Interface Versatility
Available in multiple table configurations, the die upender can be customized for different tooling requirements — from flat steel platens and U-cut profiles to T-slot or threaded-hole surfaces. Optional thin plastic overlays protect mold surfaces, while custom table dimensions and heights make it easy to integrate with existing production layouts.
Electric-Drive Power System
The MDR Series uses a fully electric drive instead of hydraulics, eliminating the risk of oil leaks and reducing maintenance needs. The motor-gear system provides smooth, controlled rotation, while a brake motor ensures safety and stability throughout the flipping process.
Flexible Rotation Capability

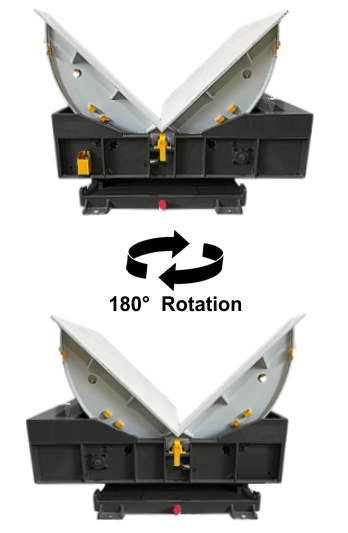

The upender provides a standard 90-degree rotation in both directions, with the ability to stop at any position in the cycle. Optional rotating bases can extend flexibility up to 180 degrees, allowing for easy die repositioning without the need to move cranes or lift systems.
Industrial-Grade Components and Easy Maintenance
All assemblies use reliable, brand-name components that are locally available and easy to service. The design emphasizes simplicity and safety — making the system intuitive to use, straightforward to maintain, and dependable in long-term industrial use.
Capacity Range and Custom Options
While this configuration is rated for 30 tons, the MDR Series covers a broad range from 5 tons (11,000 lbs) to 70 tons (150,000 lbs). Available voltage options (such as 480 V, 60 Hz, 3-phase) and customizable features — including safety rails, laser scanners, and movable transport bases — ensure that every machine can be configured to match the client’s specific needs.
Efficiency and Return on Investment
By replacing manual flipping and crane-based die handling, the 30 ton die upender increases safety, reduces downtime, and boosts productivity. The result is faster operations, less wear on tooling, and a safer workplace — delivering a measurable return on investment for every production floor.
Safe and Intuitive Operation

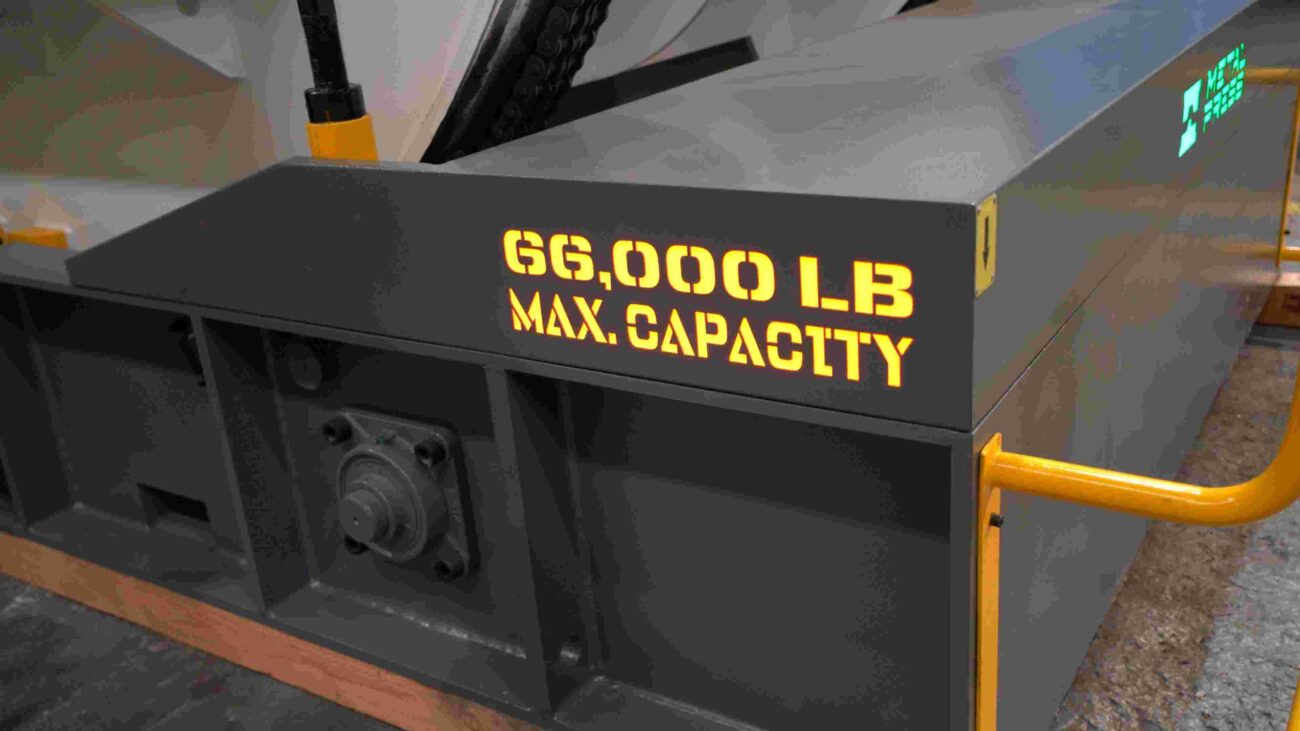

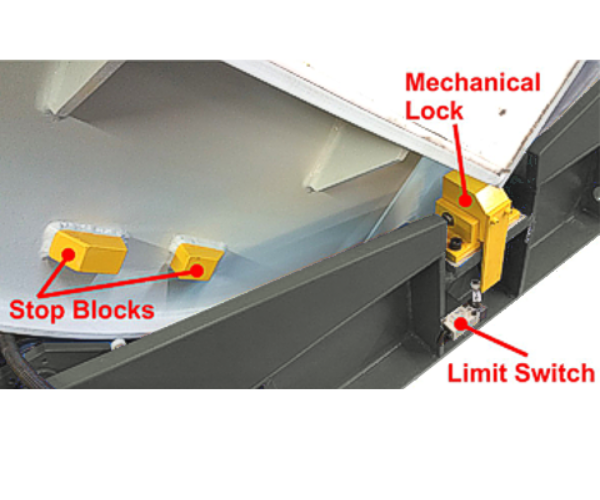

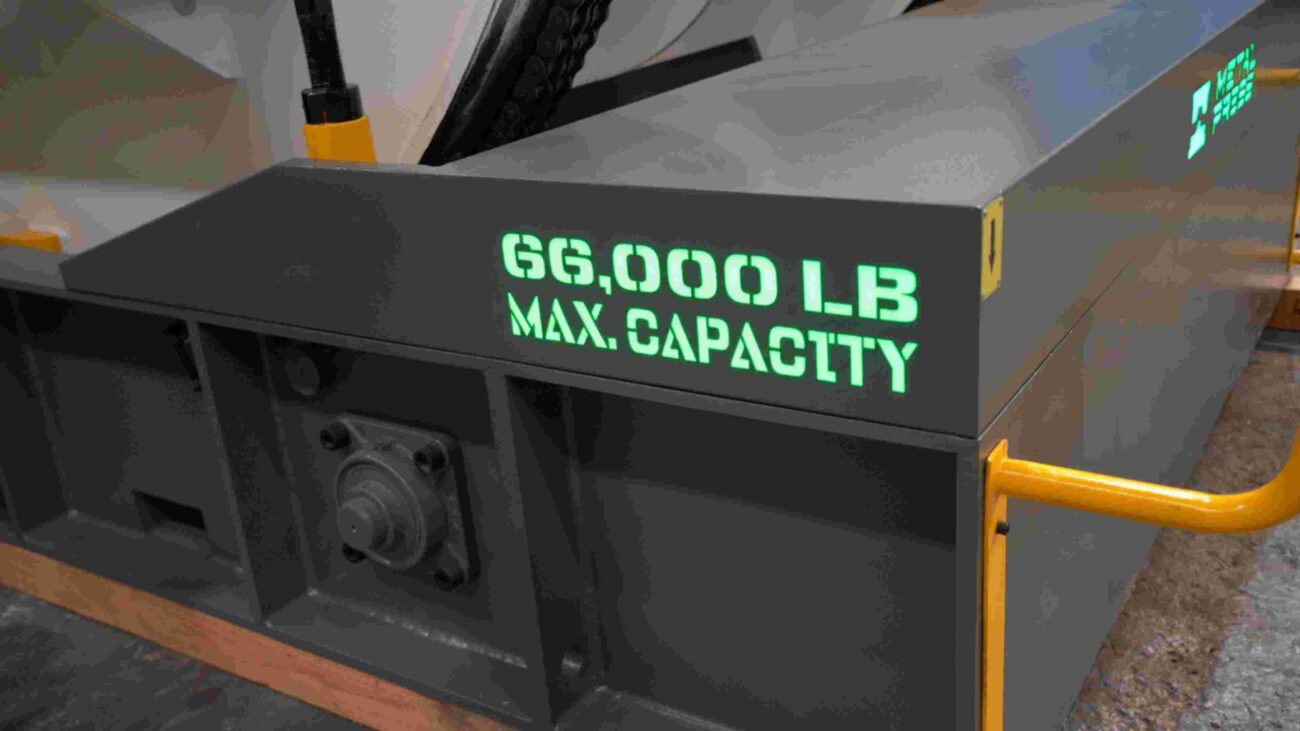

Operators benefit from clear visual feedback through tri-color LED indicators: green for ready, yellow during tipping, and red for fault or emergency stop. Mechanical locking pins and electronic limit switches provide extra safety layers, ensuring the machine stays securely positioned during maintenance or cleaning.
Green means READY
Yellow means TIPPING or INDEXING
Red means PROTECTIVE STOP or FAULT
Why the 30 Ton Die Upender Was the Ideal Fit
During the expo demonstration, the customer saw firsthand how a dedicated die upender eliminates the risks associated with forklifts and manual rigging. What stood out most was:
Rigid steel frame construction
Smooth hydraulic rotation
Operator‑friendly controls
Customizable platform dimensions
This combination of safety, stability, and configurability made the 30‑ton model an ideal match for their production environment.
Setting the Stage for Engineering Collaboration
By the end of the discovery phase, both teams had a clear understanding of the project goals. The customer wanted a solution that would:
Improve operator safety
Standardize die flipping procedures
Reduce downtime during mold changes
Support future growth and larger tooling
Design & Assembly
The design and assembly of the MDR Series 30 Ton Die Upender reflect a careful balance of engineering precision and hands-on craftsmanship. Each unit is assembled in our dedicated facility using high-quality components sourced from trusted industrial partners. Our focus is to ensure every system performs safely, smoothly, and reliably under full load conditions.

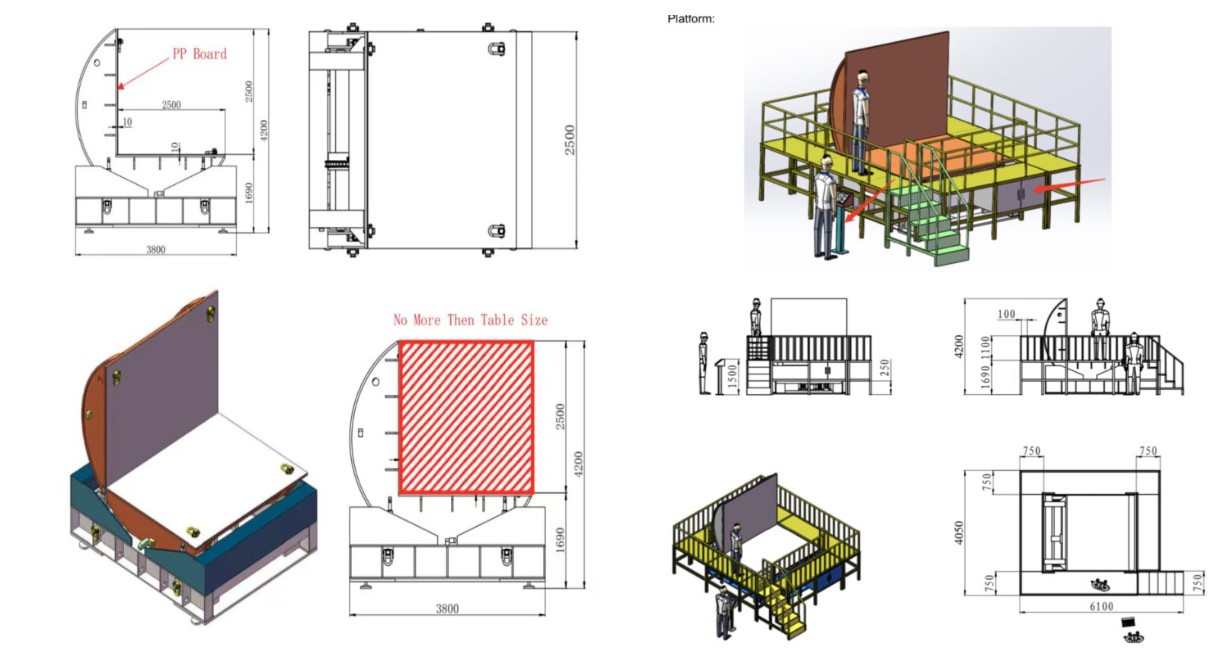

During the design phase, our engineering team models every component to achieve optimal weight balance and center-of-gravity control. The upender frame, turning cradle, and drive base are analyzed for strength and stability to handle continuous 30-ton operations. Electrical and control systems are configured to match the customer’s plant voltage and workflow, allowing for quick integration into existing production lines.

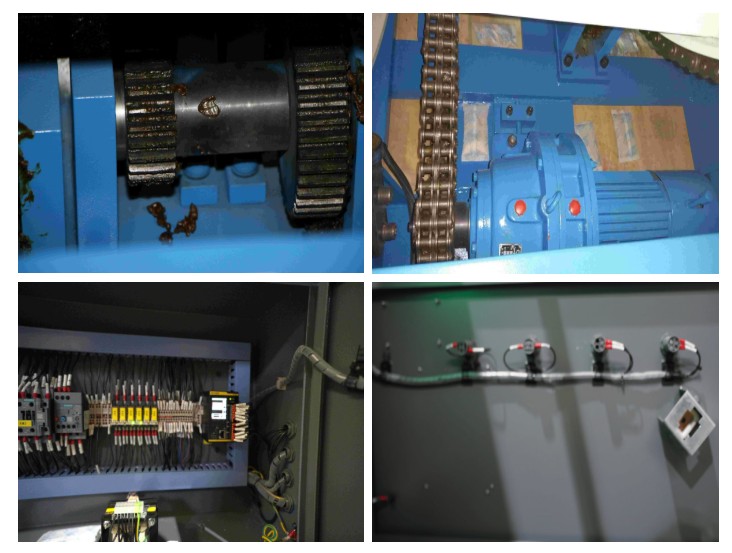

Once the specifications are approved, the assembly process begins. Our technicians align, mount, and fit each mechanical and electrical component with precision — from the gear-motor drive and chain sprocket system to the load rollers and safety sensors. Every connection is verified to meet industrial standards for performance and safety.
The system is then tested and fine-tuned for smooth rotation and controlled motion. This assembly approach ensures that each industrial die upender leaves our facility ready for heavy-duty performance while remaining easy to service and maintain.
By combining engineered design with skilled assembly, we deliver a custom die handling solution that offers long service life, low maintenance requirements, and reliable daily operation in demanding industrial environments.
👉 View our Die Upender products MDR Deries and fill the request for information form for any question you have.
MetalPress Is The Right Place to Go
MetalPress Machinery has become a trusted partner for manufacturers who handle large, high‑value tooling because we combine engineering expertise, custom‑built equipment, and a safety‑first design philosophy. Our die upenders and industrial flippers are engineered for repeatable precision, stable rotation, and long‑term reliability in demanding production environments. Unlike off‑the‑shelf lifting solutions, every MetalPress project begins with a detailed understanding of the customer’s workflow, tooling dimensions, and safety requirements — ensuring the final system integrates seamlessly into their operation. With decades of experience in heavy die handling and a commitment to transparent, collaborative project management, MetalPress delivers solutions that reduce risk, shorten changeovers, and support continuous production.
On the Factory Floor — Assembling the Core
Once the design was finalized, our team moved into the assembly phase. As an industrial machinery assembler, we source components from trusted manufacturers specializing in hydraulic, electrical, and structural systems.
At our facility, our technicians began assembling the industrial die upender piece by piece. The main frame, turning cradle, and hydraulic cylinders were aligned and fitted with precision. Electrical panels were wired, safety sensors were connected, and every joint was verified for mechanical integrity.

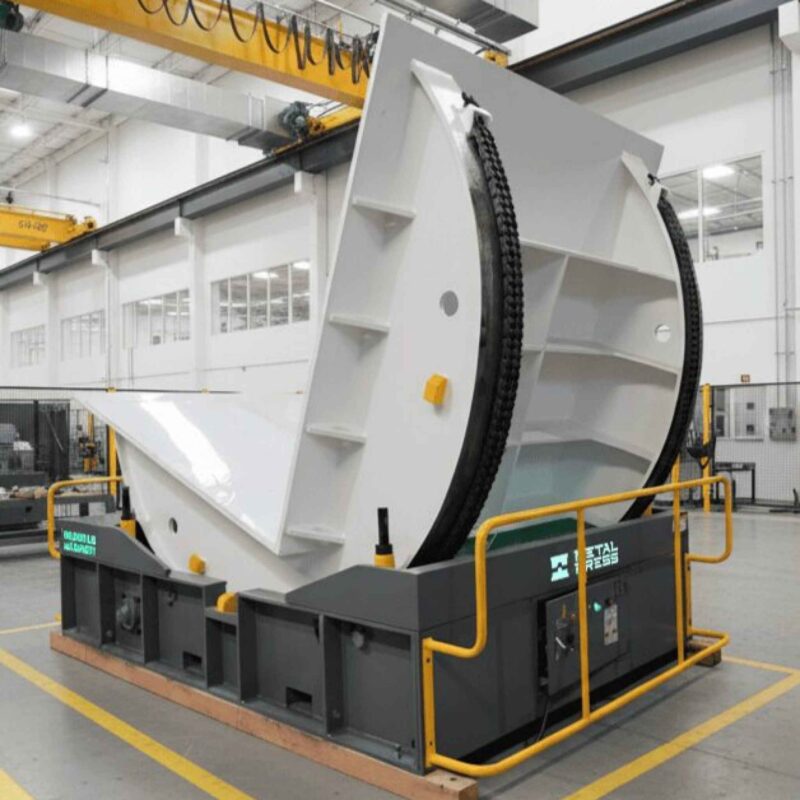

The result was a robust die flipper assembly capable of safely rotating molds and dies weighing up to 30 tons; all while maintaining smooth, controlled motion.
Our technicians welded the reinforced steel frame, installed the hydraulic cylinders, and wired the Siemens PLC and HMI control system—all with the precision required for industrial die maintenance equipment. The machine’s 8-ton tilting capacity and 49-inch stroke demanded close coordination between our mechanical and electrical teams to ensure safe and reliable operation.
Let Us Make the Right Die Upender for You
Whether you’re handling heavy molds, dies, or tooling, our MDR Series Die Upenders are engineered for safety, precision, and efficiency.
Each unit is assembled to meet your exact load capacity, workspace, and operational requirements which is delivering smooth, stable rotation and long-term reliability.
