Engineering the THC‑D‑24 Hot Oil Temperature Control Unit for Plastic Processing Manufacturer from Michigan
Every industrial project begins with a challenge, and this one started when a plastics processing manufacturer from Michigan contacted us through our website. Their molding operation required precise, high‑temperature control, but their existing system struggled to maintain stable temperatures during long production cycles. Inconsistent heating was causing part defects, extended cycle times, and unnecessary downtime.
They needed a reliable hot oil temperature control unit capable of delivering consistent thermal performance at elevated temperatures. After reviewing their process requirements, our engineering team recommended the THC‑D‑24 model, a robust hot oil TCU designed for demanding applications requiring stable temperatures up to 300°C.
This initial consultation marked the beginning of a collaborative engineering journey to deliver a high‑performance thermal oil heater tailored to their production needs.
MetalPress Machinery is pioneer in manufacturing temperature controle units. In addition to hot oil TCU, we have provide high-flow water TCUs ideal for large molds, multi‑zone tooling, and high‑demand industrial processes. We also provide water channel cleaning units that deliver essential maintenance for mold cooling systems.
Understanding Hot Oil Temperature Control Units
Before diving into the engineering process, it’s important to understand the role of hot oil temperature control units in modern manufacturing.
What Is a Hot Oil Temperature Control Unit?
A hot oil temperature control unit—also known as a hot oil TCU, thermal oil heater, or high‑temperature process heating system—is designed to heat and circulate thermal oil through molds, dies, tanks, or process equipment. Unlike water‑based systems, hot oil TCUs can reach significantly higher temperatures without pressurization, making them ideal for high‑temperature industrial processes.
Where Hot Oil TCUs Are Used
These systems are essential in:
Plastics injection molding
Extrusion and blow molding
Die casting
Chemical processing
Food and pharmaceutical heating
Oil and gas equipment conditioning
Any process requiring stable, high‑temperature control benefits from a hot oil temperature control unit like the THC‑D‑24.
👉 You can visit our hot oil temperature control units (THC-D Series) page and contact our specialists for details about our trim presses.
Get A Free Quote
Call 519-624-9987 to immediately talk to a technician, or fill in the form below and get a same day reply.
Introducing the THC‑D‑24 Hot Oil Temperature Control Unit
The THC‑D‑24 is a high‑performance hot oil TCU engineered for precision, reliability, and continuous operation. Its specifications make it ideal for demanding thermal applications.
Key Specifications of the THC‑D‑24
Heating Capacity: 24 kW
Maximum Operating Temperature: 300°C
Pump Type: High‑flow, high‑temperature circulation pump
Pump Flow Rate: Engineered for stable oil movement through long and complex channels
Reservoir: Integrated thermal expansion tank
Construction: Stainless‑steel piping and high‑temperature fittings
Controls: Digital temperature controller with PID logic
Safety Features:
Over‑temperature protection
Low‑level and low‑flow alarms
High‑temperature insulation
Emergency shutoff circuits
Electrical System: Fully enclosed control cabinet with relays, breakers, and HMI interface
These specifications ensured that the THC‑D‑24 would deliver the thermal stability the Michigan manufacturer needed for their molding operation.
Application Analysis: Understanding the Customer’s Thermal Load
Before engineering began, our team conducted a detailed analysis of the customer’s process. This included:
Mold size and mass
Oil channel geometry
Required heat‑up time
Steady‑state heat load
Ambient conditions
Duty cycle and production schedule
This analysis confirmed that the customer required:
Fast heat‑up capability
Tight temperature stability (±1°C)
High flow to maintain uniform mold temperature
Continuous operation without overheating
The THC‑D‑24 hot oil temperature control unit was selected because it met all these criteria with room for future expansion.

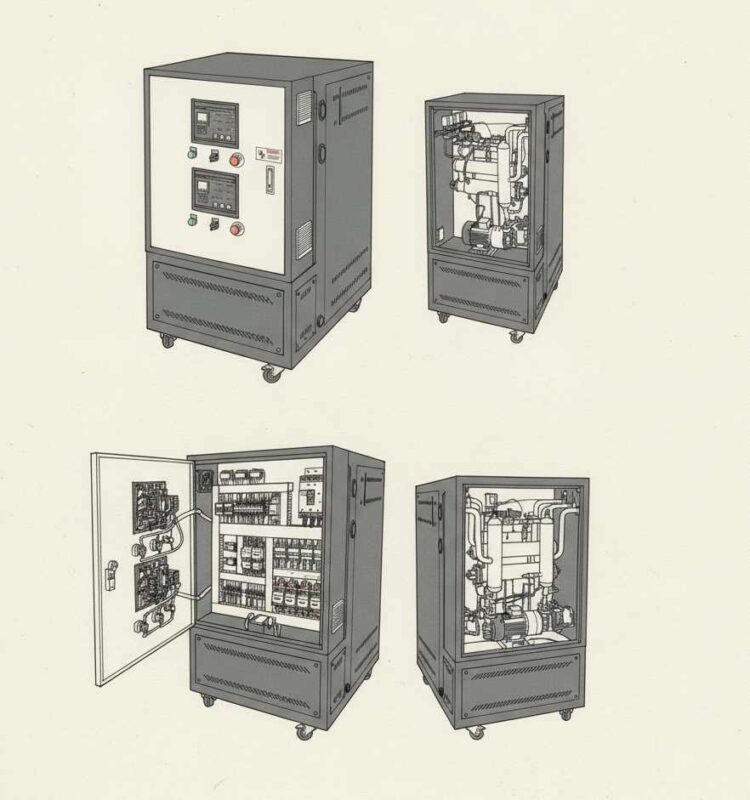

Design and Engineering: Turning Requirements Into Reality
Transforming the customer’s requirements into a fully engineered THC‑D‑24 hot oil temperature control unit began with a detailed design review. Our engineering team analyzed the customer’s heat‑load demands, mold channel layout, and required temperature stability. Using this information, we configured the THC‑D‑24 to match their exact process conditions.
3D models were created for the heater assembly, pump layout, reservoir integration, and control panel. Thermal calculations ensured the 24 kW heater would maintain stable temperatures even during peak load conditions. Flow simulations confirmed that the circulation pump would deliver consistent oil movement through long piping runs and complex tooling geometries.
This phase is where the foundation of a high‑performance hot oil TCU is established with precision and foresight.
Fabrication and Assembly: Building the THC‑D‑24

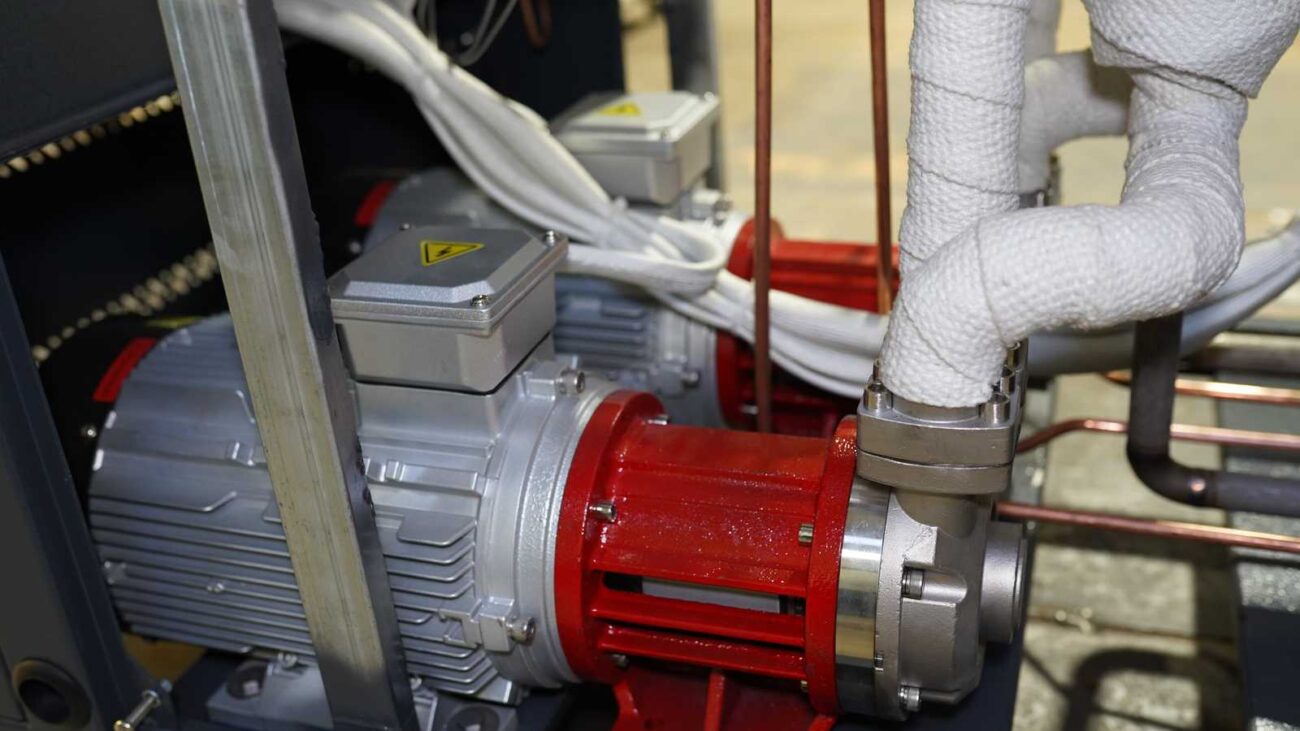

Once the design was approved, fabrication began. The heater housing, reservoir tank, and pump base were manufactured from high‑grade steel to withstand continuous high‑temperature operation. The 24 kW heating elements were installed and wired into the control cabinet, and the high‑temperature circulation pump was mounted and aligned for optimal flow.

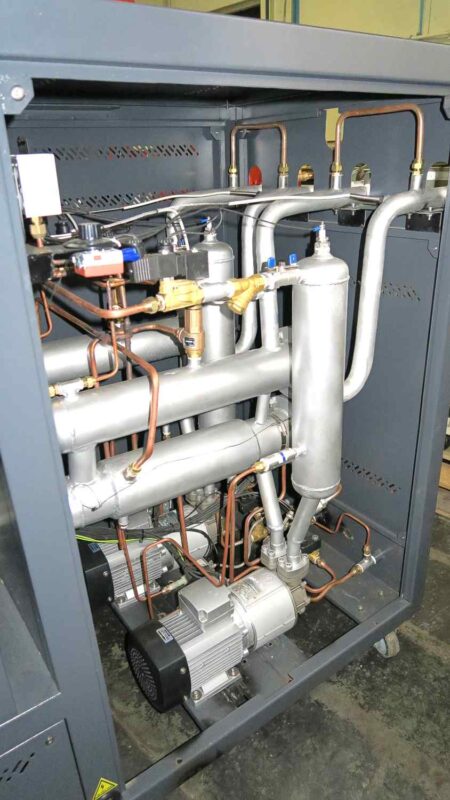

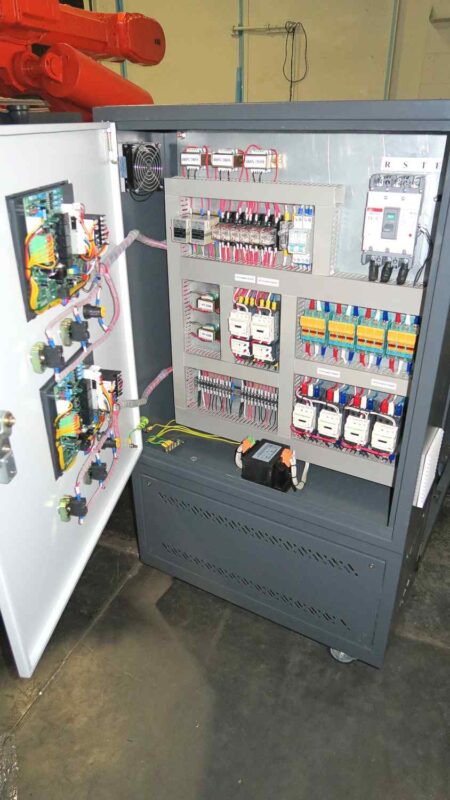

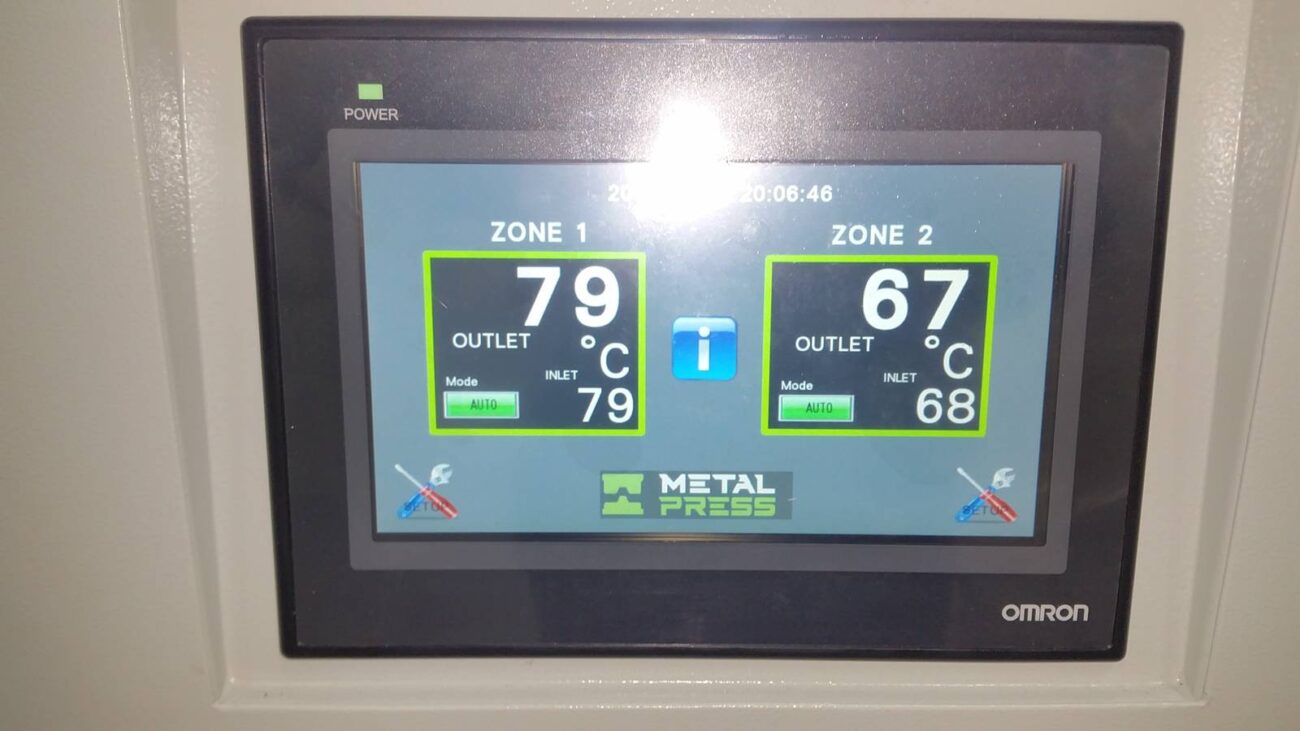

Stainless‑steel piping was routed with precision to ensure leak‑free operation. The electrical panel was assembled with temperature controllers, relays, safety circuits, and a digital HMI interface.
By the end of assembly, the THC‑D‑24 hot oil temperature control unit stood fully built—mechanically complete, wired, plumbed, and ready for testing.
Safety Integration and Client Feedback
Safety is a core part of every thermal system we build. During Phase One, we integrated:
Over‑temperature protection
Low‑flow and low‑level alarms
Emergency shutoff circuits
High‑temperature insulation
Pressure‑relief components
Throughout the process, we maintained open communication with the Michigan manufacturer. Their team provided feedback on control panel placement, preferred alarm settings, and connection locations. This collaboration ensured the final THC‑D‑24 hot oil TCU would integrate seamlessly into their production line.
Phase One Conclusion: A Nearly Completed THC‑D‑24 Hot Oil Temperature Control Unit
By the end of Phase One, the machine was:
Fully assembled
Wired and plumbed
Safety systems installed
Mechanically complete
Ready for testing and pre‑commissioning
The next phase will focus on final inspection, temperature calibration, functional testing, and pre‑shipping preparation before delivery to the Michigan facility.
